Y6 6 Heads Moving Head Laser Bar

New version Y6 with faster speed and more powerful motors, smoother and more stable performance.
Vertical 240° rotation, each head individual 140° rotation

 Technical Parameter

Model
Y6-RGB2200/ Y6-R3000/ Y6-B3000/ Y6-G600
Description
2.2W RGB laser bar/3W Red laser bar/3W Blue laser bar/0.6W Green laser bar
Configuration
R638-500 x 2pcs / G530-100 x 2pcs / B445-500 x 2pcs / R638-500 x 6pcs/B445-500 x 6pcs/G530-100 x 6pcs
model::
Y6-2.2W RGB
Y6-3W Red
Y6-3W Blue
  • Y6    6 Heads Moving Head Laser Bar
  • Y6    6 Heads Moving Head Laser Bar
  • Y6    6 Heads Moving Head Laser Bar
  • Y6    6 Heads Moving Head Laser Bar

Description

Y6-RGB2200

Configuration: R638-500 x 2pcs/G530-100 x 2pcs/ B445-500 x 2pcs

Y6-R3000

Configuration:R638-500 x 6pcs

Y6-B3000

Configuration: B445-500 x 6pcs

Y6-G600

Configuration: G530-100 x 6pcs

◎Rated voltage: AC100~240V 50/60Hz;

◎Power consumption: ≤180W

◎Laser color: R,G,B/Red/Green/Blue(Option)

◎Beam diameter: φ 15mm

◎Modulation: analog

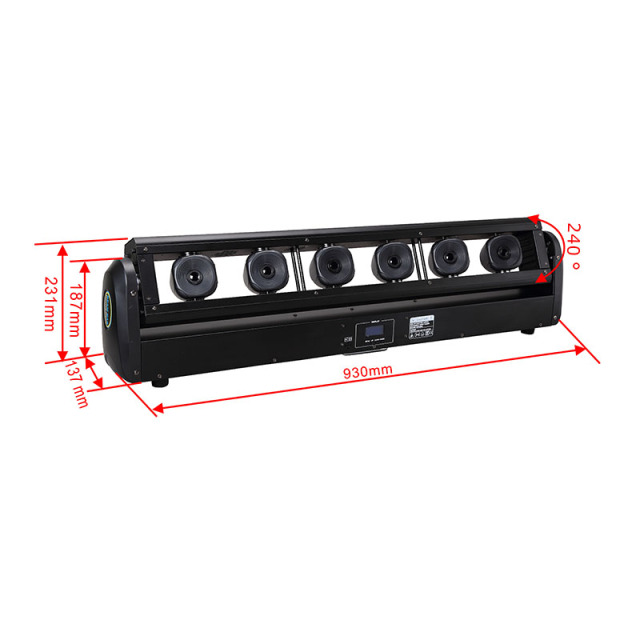

◎Rotation: Y axis240° ,each head140°

◎Channel: 11(default)/23/30CH

◎Control mode: sound/ automatic/DMX512/ master-slave

◎Scan system: 7pcs 42 high torque stepper motor

◎Control technology: ① RDM data bidirectional transmission ②temperature control system ③ DMX512 upgrade

◎Operating requirement: dry, less dust,  0~35(environmental temperature),will reduce the attenuation of the diode and extend the life of the light.

 ◎Application:indoor small medium events

◎2 in 1 carton box size (L x H x W): 114 x 35 x 48cm

◎N.W./G.W.: 20/25 kg

 Technical Parameter

Model

Item name

Power

Y6-RGB2200

2.2W RGB laser bar

R638-500 x 2pcs / G530-100 x 2pcs / B445-500 x 2pcs

Y6-R3000

3W Red laser bar

R638-500 x 6pcs

Y6-B3000

3W Blue laser bar

B445-500 x 6pcs

Y6-G600

0.6W Green laser bar

G530-100 x 6pcs


 QUALITY CONTROL


Why Lightful Laser Are So Popular

14+ years focus on Lightful Laser R&D and production, we have CNC metal machine workshop, laser diode workshop & laser light workshop. self-purchased 6000㎡ factory building ,about 100 workers.

ISO9001 certification and strictly implement system reguirements, CE RoHS and professional after-sales services support.
