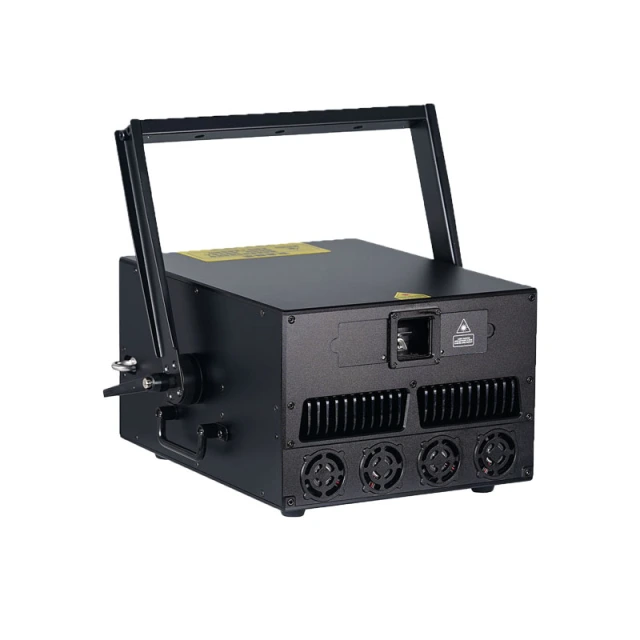

A17 20W 30W RGB Animation Laser for Professional Stage Procurement
The Lightful A17 series is built for buyers who need a practical RGB animation laser platform for concerts, stadium shows, festivals, TV productions, clubs, and advertising displays. It gives procurement teams a clear choice between 20W and 30W output levels while keeping scanner performance, control interfaces, and built-in effect options organized for quotation review.
For distributors comparing Animation laser light manufacturers, the A17 page provides concrete model, diode, control, beam, weight, and operating data. For buyers searching for 30w rgb laser lights suppliers, the A17-30W configuration offers a focused specification path for professional show inventories.
Hard Specifications
The A17 series combines RGB diode output, 40K scanning, multiple control modes, and built-in animation content for show teams that need repeatable setup across venues and rental inventories.
Description
A17 is a professional RGB animation laser line for buyers who need a balanced fixture between visible output, show-control flexibility, and transportable event use. The product page lists 20W and 30W RGB configurations, analog modulation, 40K scanning, DMX512, Art-Net, and ILDA options, making it suitable for distributors and rental teams that support mixed control environments.
Core Supply Advantages
Model Selection Clarity
Clear 20W and 30W model paths help distributors quote by venue size, control requirement, and output budget without mixing unrelated fixtures.
Control-Ready Inventory
DMX512, Art-Net, and ILDA support allow rental teams to align the A17 series with existing consoles, laser software, and programmed show files.
Factory Specification Clarity
Published diode, scanner, beam, size, and weight data help importers review technical fit before requesting a formal quotation.
Product Specifications
| Product name | A17 20W / 30W RGB animation laser |
|---|---|
| Model reference | M17-RGB30000 / M17-RGB20000; A17-20W, A17-30W, A17-20W(FB4), A17-30W(FB4) |
| 30W RGB configuration | R635 8W / G525 10W / B450 12W |
| 20W RGB configuration | R635 5.8W / G525 7.2W / B450 9W |
| Rated voltage | AC100-240V, 50/60Hz |
| Power consumption | Less than or equal to 850W |
| Scanner | 40K large mirror fast speed module scanner; maximum plus or minus 30 degree scan angle |
| Beam data | 8 by 6.5 mm beam diameter; 1.2 mrad divergence |
| Control modes | Automatic, master-slave, DMX512, Art-Net, ILDA |
| Control interface | 3-pin DMX512, 25DB ILDA, easy ILDA, Art-Net |
| Built-in effects | 140 patterns and 20 animations listed on the product page |
| Operating requirement | Dry, low-dust environment, 0-35 degrees Celsius |
| Application | Concert, stadium, advertising, party scene, festival, TV show, and stage production use |
| Size and weight | 72 by 56 by 43 cm; 24 kg net weight and 41 kg gross weight |
Related Technical Reading
These Lightful resources support buyer evaluation of beam presentation, laser animation control, and the A17 product line.
Control Modes for Laser Animation in Entertainment Venues
This article supports the control-side discussion for animation laser projects, including how venue teams plan control workflows around different show environments.
Read ArticleLightful A17 Series Product Line Overview
A product-line article for procurement teams that want to compare A17 positioning, animation laser use cases, and purchasing context before a model is specified.
Read ArticleVerified Procurement Feedback
Procurement teams commonly evaluate RGB animation lasers by control compatibility, configuration clarity, and stable batch planning for repeated show use.
5/5 rating
"The A17 specification table made our fixture comparison easier because scanner speed, control interfaces, and output configurations were clear enough for internal review."
Stage Lighting Procurement Manager, Germany
5/5 rating
"For rental inventory planning, the 20W and 30W choices helped us match different indoor and outdoor event requirements while keeping the same control family."
Rental Warehouse Director, United Arab Emirates
5/5 rating
"The combination of DMX512, Art-Net, and ILDA support is important for our distributor customers because different venues request different programming workflows."
Entertainment Lighting Distributor, Brazil
A17 Procurement FAQ
What is the main difference between the A17 20W and A17 30W RGB animation laser?
The A17 20W version uses an RGB diode configuration of R635 5.8W, G525 7.2W, and B450 9W, while the A17 30W version uses R635 8W, G525 10W, and B450 12W. Procurement teams normally select the output level according to venue size, ambient light, projection distance, and the intended effect density.
Which control systems can be planned around this laser?
The A17 series supports automatic, master-slave, DMX512, Art-Net, and ILDA control modes. The product page lists 5CH, 17CH, 18CH, 27CH, and 52CH DMX options, plus 3-pin DMX512, 25DB ILDA, easy ILDA, and Art-Net interfaces for different show programming workflows.
How should buyers evaluate the scanner and beam data before placing an order?
Buyers should review the 40K scanner, maximum plus or minus 30 degree scan angle, plus or minus 5V input signal, and linearity distortion below 2 percent. Beam diameter and divergence are listed as 8 by 6.5 mm and 1.2 mrad, which helps engineers estimate projection sharpness and visible coverage.
Can the A17 series support venues that need built-in effects and programmed show control?
Yes. The listed demonstration effect package includes 140 built-in patterns arranged as 7 groups by 20 cues, plus 20 animations arranged as 1 group by 20 cues. DMX effects include blanking, strobe, rotation, movement, billowing, zoom, write-in, speed, and color control.
What operating environment should be confirmed during procurement?
The product page recommends dry, low-dust operating conditions with an environmental temperature of 0 to 35 degrees Celsius. Buyers should check ventilation, dust exposure, rigging position, cable routing, and show-control access before final fixture selection.
What information should a distributor prepare before requesting a quotation?
A distributor should prepare the target model, output level, FB4 preference if required, control mode, intended venue type, expected quantity, destination market, packing needs, and any documentation requirements. This helps the supplier confirm the correct configuration and quote scope.
