View productSpecifying a fat beam laser bar for a mid-size indoor room comes down to three numbers: how wide the beam reads at the aperture, how many heads you can aim, and how deep the control channel count goes. The Y22-W24000 answers all three as a 12-head moving head laser bar, built around φ15mm beam outputs, analog modulation and 180° rotation on every head, so one fixture can run as a single wide wall of light or as twelve independently aimed beams.

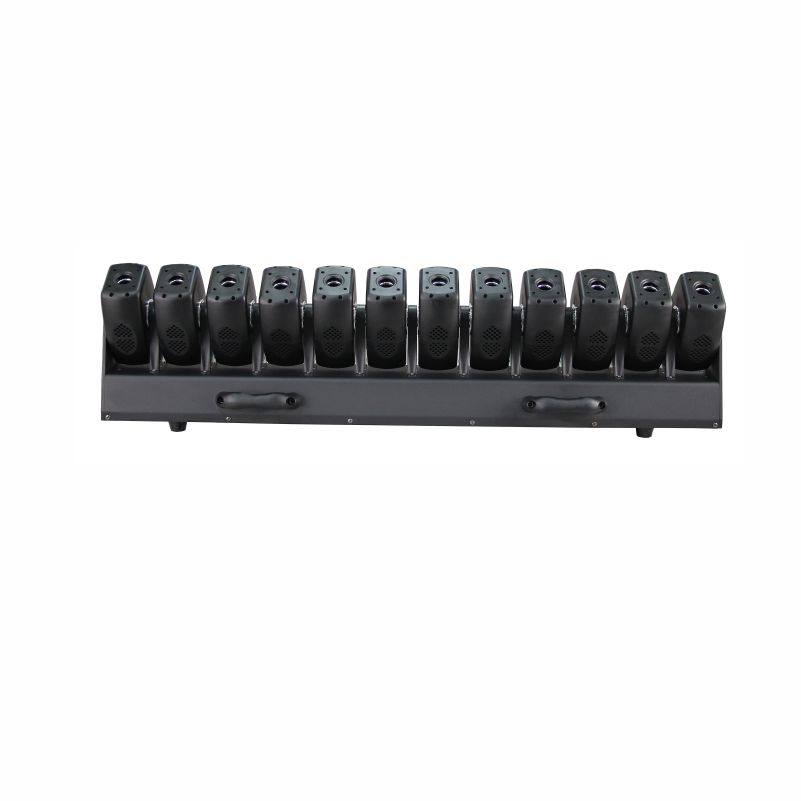

Twelve sealed output apertures along one compact bar chassis — the source of the wide, solid beam columns.
Beam diameter at the aperture is the deciding figure. A needle-thin effect disappears across a long room; a wide, dense column stays readable from the back row. On the Y22-W24000 the specification is explicit: φ15mm per head, RGB full colour, and analog modulation so colour fades glide instead of stepping.
The product page lists an alternate module build of the same model — W2000 (R638-600mw + G520-500mw + B450-1W) × 12 pcs — alongside W2000 (R600 + G500 + B1W) × 12 pcs. Confirm which build you require when you request a quote.
Head count, output, beam diameter, rotation, channels and power, side by side. The Y22 column is fully specified; where a model’s published data is not yet available, the row says so rather than guessing.
| Model | Heads | Output | Beam diameter | Rotation | Channels | Power | Typical application |
|---|---|---|---|---|---|---|---|
| Y22-W24000 | 12 | 24W RGB full colour | φ15mm | 180° per head | 14CH / 74CH | ≤220W | Indoor medium events |
| S6 | 6 | RGB | Specs pending | Specs pending | Specs pending | Specs pending | Outdoor animation scan request quote |
| D1 | Specs pending | Green / RGB | Specs pending | Specs pending | Specs pending | Specs pending | Landmark projection request quote |
| D8-I | Specs pending | Green / RGB | Specs pending | Specs pending | Specs pending | Specs pending | Waterproof installs request quote |
Y22-W24000 figures are taken from the current product page: 24W RGB, 12 heads, φ15mm beam diameter, 180° rotation per head, 14CH / 74CH, ≤220W, indoor medium events. Rows marked “specs pending” need a direct data request — confirm output, beam diameter, channels and power for your configuration before ordering.
The Y22-W24000 is a modular 12-head bar. Every head can be commanded together for one large-scale gesture, or addressed on its own for detail work — the same hardware, two very different shows.
All twelve heads move together for neat, large-scale visual effects. This is the fast route for chases, sweeps and mirrored looks, and it holds alignment across a spliced row of units.
Each head can be controlled individually and rotates through 180°, so beams can fan, cross and layer. Seven 42-frame high-torque stepper motors drive the movement precisely across the bar.
Splicing works horizontally and vertically, so a run of bars can form one continuous horizontal wall or a stacked vertical curtain. Built-in effects and easy macro recall let operators rebuild a saved look in seconds instead of re-programming it.
High-torque stepper motors sit behind each head, holding beam positions through long show runs.
Multi-head bars sit alongside four other laser families. If the effect you picture does not match the description below, a bar is the wrong tool — pick the row that sounds like your show.
Pick this if you want wide, solid beam columns arranged in a row you can sweep, fan or splice. Best for clubs, medium indoor events and stages where the beam itself is the visual. This is the Y22-W24000 category.
Pick this if you want a fine, sharp pencil line for aerial punctuation rather than body. Thin beams read as accents over a crowd; they do not fill a room the way a fat beam does.
Pick this if you need drawn graphics, text and patterns projected onto a surface. Scanners render shapes; a multi-head bar renders beams and movement, not logos.
Pick this if you want a grid of individually addressed points for pixel-style animation. It is a display surface, not a beam array, and it behaves differently in a rig.
Pick this if the show is built around moving graphics and figures. Animation content is drawn, so beam diameter and head count matter far less than scan performance.
Pick this if the fixture must live outdoors or throw a single long column across a skyline. That is a housing and throw-distance decision before it is a beam-shape one.
Compact 12-head chassis, designed for tight rigging positions indoors.
Everything below is taken from the current product page. Use it for the electrical schedule, the rigging plan and the control patch.
Four decisions carry straight over from the specification sheet to site day. Getting them right before the quote avoids change orders later.
Compact and rig-friendly: one bar covers a full 12-head array indoors.
This is a quote-based lineup: there is no cart checkout. Send the venue type, unit count and control mode, and the team returns pricing, lead time and configuration options for the build you need.
Keep adjacent product options together for a faster catalog comparison.
Fully customizable OEM solutions for the sixscan laser bar. Engineered with IP66-rated housing, this outdoor laser light offers 30Kpps precision.
View product
Professional-grade D1 laser features 360° rotation and IP65 protection. Trusted by laser manufacturers for reliable rgb laser light and outdoor projection.
View product
D8 series rgb laser light solutions provide IP65-rated durability for professional integrators. Sourced from expert laser manufacturers for outdoor events.
View productthe product page lists a φ15mm beam diameter with rgb full colour output and analog modulation. that wide aperture is what gives the fixture its solid, sharply defined beam columns rather than thin pencil lines.
there are 12 heads. all twelve can move in unison for neat, large-scale visual effects, or each head can be controlled individually. every head rotates through 180°.
the page shows w2000 (r600 + g500 + b1w) × 12 pcs and an alternate listing of w2000 (r638-600mw + g520-500mw + b450-1w) × 12 pcs. confirm which build you require when requesting your quote.
control modes are sound, automatic, dmx512, master-slave and user mode, with 14ch or 74ch channel options. the control technology includes rdm bidirectional data transmission and a dmx512 upgrade.
rated voltage is ac100~240v 50/60hz with power consumption of ≤220w. it should be operated dry and in low-dust conditions at 0~35°c, which the page notes reduces diode attenuation and extends the life of the light.
packing is 1 in 1 carton at 108 × 21 × 36cm, with 23kg net and 25kg gross weight. ordering runs through the quote list rather than a cart, so submit your unit count, module configuration and any oem or customisation requirements through the contact page.
