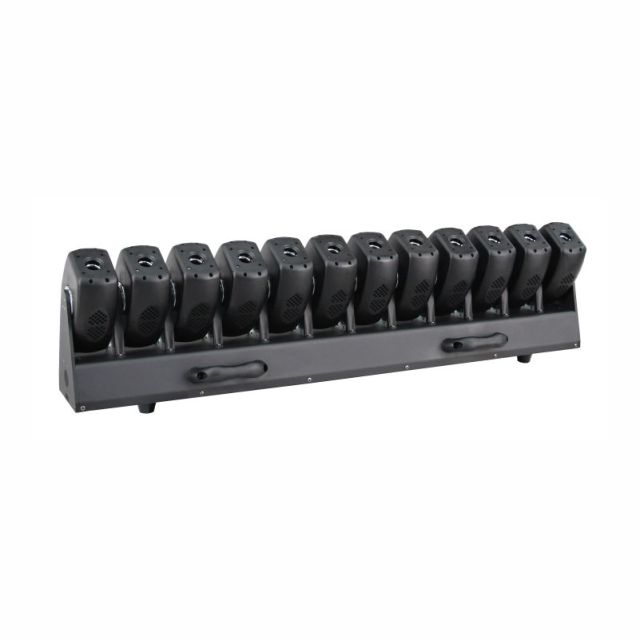

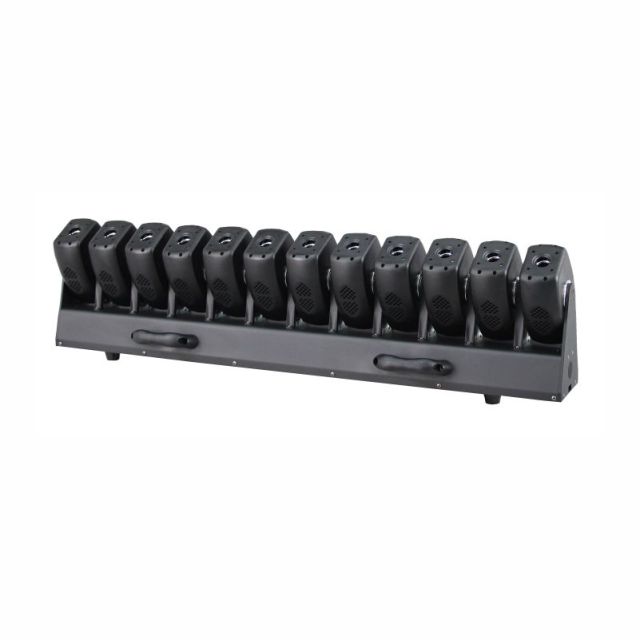

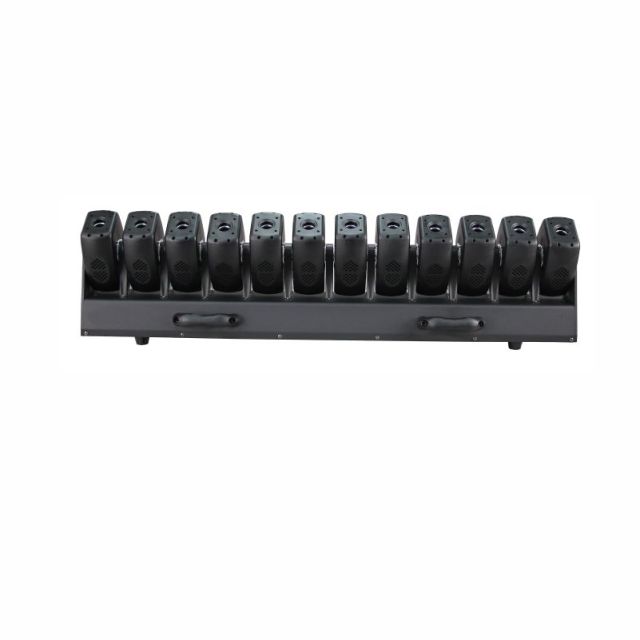

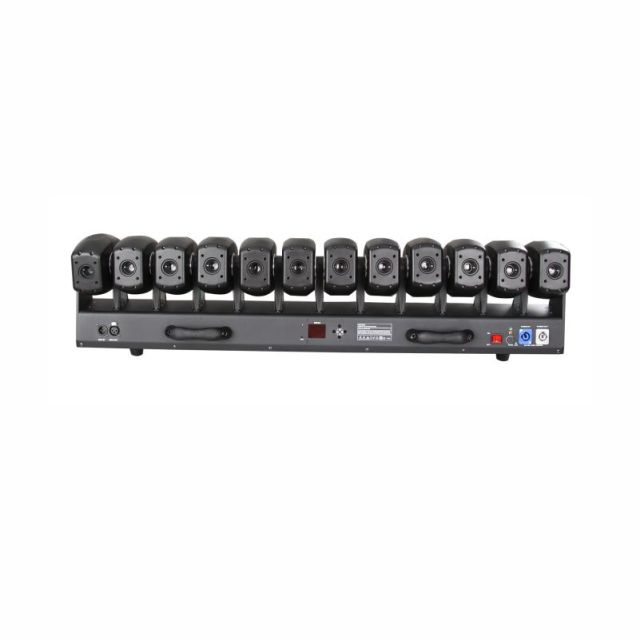

1.This 12-head full-color laser has a solid structure, supports horizontal and vertical splicing, is flexible to install, and is suitable for a variety of scenes.
2.It is fully functional, has rich built-in effects, and is easy to call macro functions, which can quickly realize creative ideas.
3.The lighting control mode is diverse, and the 12 heads can move in unison to present neat and shocking visual effects; each head can also be controlled individually, which is flexible and changeable to meet personalized needs.
Technical Parameter
This 24W RGB moving head laser bar is engineered for indoor medium-sized event productions, targeting professionals in entertainment venues, concert organizers, and theatre lighting technicians. Designed by a leading laser moving head manufacturer, it offers a versatile lighting solution suitable for disco lights and dynamic theatre laser light applications. The product’s modular 12-head configuration enables simultaneous or independent control, meeting the demands of complex stage environments requiring precision and flexibility in visual effects.
Equipped with 12 high-power RGB laser units, each capable of 180° rotation, this device produces fat beam outputs with smooth color mixing and sharp beam definition. Control modes include DMX512, master-slave, sound activation, and user-customized settings, utilizing RDM bidirectional data transmission for efficient system integration. The laser bar’s compact design supports horizontal and vertical splicing, facilitating seamless installation within disco laser lights setups. Power consumption remains optimized at 220W with robust stepper motors ensuring precise beam movement.
This 24W RGB moving head laser light is integral to environments requiring immersive lighting effects, such as nightclubs, concert halls, and corporate events with disco lights laser demands. Its flexible control system allows synchronization with audio and lighting consoles, making it a valuable asset for live performances and large-scale entertainment productions. As a product from established rgb moving head laser light manufacturers, it ensures compliance with industry standards while enhancing visual engagement in theatre laser light shows and DJ setups.
The laser bar utilizes a modular 12-head design, enabling independent or grouped operation to suit various lighting scenarios common in disco lights and theatre laser light productions. Its sturdy yet lightweight frame allows for both horizontal and vertical splicing, enhancing installation adaptability. Incorporation of multiple control protocols, including DMX512 and RDM, ensures compatibility with existing lighting infrastructure, positioning this moving laser light as a flexible and scalable component within integrated lighting systems provided by experienced laser moving head manufacturers.
Performance optimization features include precise 180° rotating heads supported by high-torque stepper motors for smooth, accurate beam positioning across disco laser lights and disco lights laser setups. Intuitive control modes allow rapid configuration adjustments on site, reducing setup time in demanding theatre laser light and event environments. This moving laser light maintains stable operation within typical indoor temperature ranges, providing reliable output quality essential for professional lighting engineers focused on system uptime and consistent event presentation.

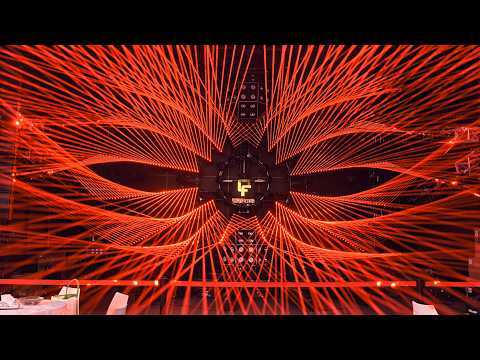

Within nightclubs and discotheques, this 24W RGB moving head laser light functions as a core element for creating vibrant disco lights laser effects that synchronize with music and atmosphere. Its 12 independently movable heads enable complex visual designs, directly enhancing entertainment value and customer experience. The laser moving head manufacturer’s adherence to electrical and optical safety standards ensures compliance for public venues. Integration with DMX512-based control desks allows lighting operators to program dynamic shows aligned with the club’s audiovisual system.
In theatre production environments, this disco lights laser fixture acts as a dynamic accent and special effects device. The product’s ability to rotate heads 180° independently supports nuanced stage lighting designs essential for thematic performances and live events. Its compatibility with master-slave and user-defined modes offers control engineers the flexibility to integrate with existing theatre laser light architectures, synchronizing with broader lighting cues and show control platforms. This solution contributes measurable improvements in visual storytelling through precise and vivid RGB beam displays.
|
◎Y22-W24000 |
◎Configuration：W2000(R638-600mw + G520-500mw + B450-1W) x12pcs |
|
◎Rated Voltage: AC100~240V 50/60Hz; |
◎Power consumption: ≤220W |
|
◎Laser color:RGB full color |
◎Beam diameter: φ15mm |
|
◎Motor: 7pcs 42 high torque stepper motor |
◎Modulation:analog |
|

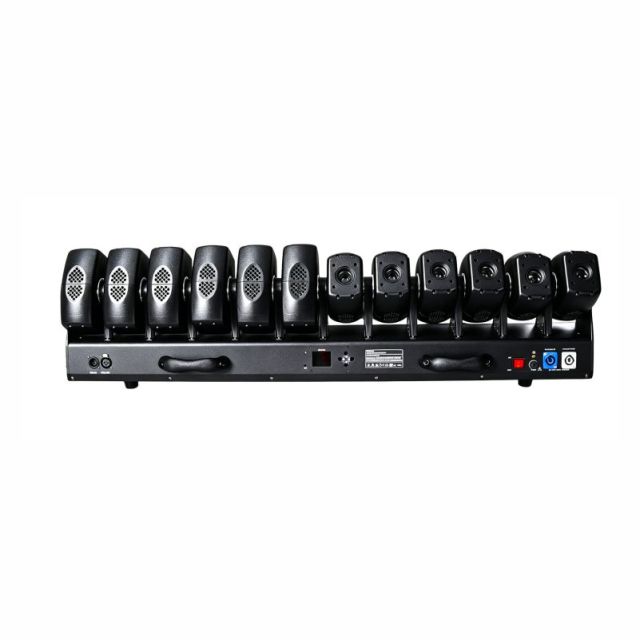

◎Rotation: each head 180° rotation |
◎Channel:14CH / 74CH |
|
◎Control mode: Sound/ Automatic/DMX512/ Master-Slave/User mode |
◎Control technology: ① RDM data bidirectional transmission ② DMX 512 upgrade |
|
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light. |
◎Application: indoor medium events |
|
◎1 in1 carton packing size:108 x 21 x 36cm |
◎N.W./G.W.: 23/25kg |
|
|
|
Technical Parameter
|
Model |
Item name |
Power |
|
Y22-W24000 |
24W RGB moving head laser bar |
W2000(R600+G500+B1W) x12pcs |
QUALITY CONTROL
What customization options do you offer for the Y22 24W RGB FAT BEAM MOVING HEAD LASER BAR?
We provide flexible control modes and settings allowing each of the 12 laser heads to be individually configured or synchronized. This makes it ideal for creating unique effects in your disco laser lights or moving laser light setups tailored to specific event requirements.
How easy is it to install and integrate this laser bar into existing lighting systems?
Our Y22 laser bar supports DMX512 and RDM protocols with sound, automatic, master-slave, and user modes. Its compact design permits horizontal and vertical splicing, simplifying installation and integration into your rgb moving head laser light manufacturers system or stage lighting rig.
Can you explain the maintenance requirements for this laser moving head manufacturer product?
We design our products with durable components to minimize upkeep. Routine cleaning of laser lenses and periodic motor inspections ensure consistent performance. Our team provides technical support for troubleshooting to keep your disco lights laser running reliably over time.
Do you offer shipping and logistics support for bulk orders of your laser equipment?
Yes, we support reliable packaging with secure boxes sized 108 × 21 × 36 cm, suitable for bulk shipments. Whether you require multiple units of our laser moving head manufacturer products for large events or distributors, we coordinate logistics to meet your delivery schedule efficiently.
