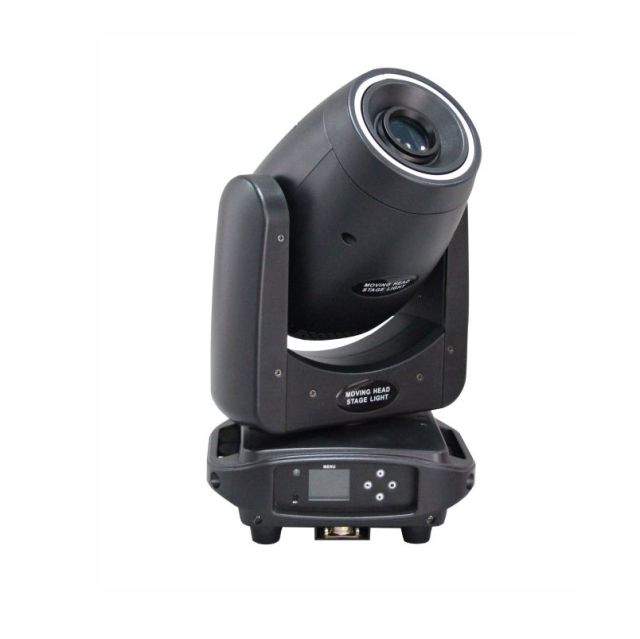

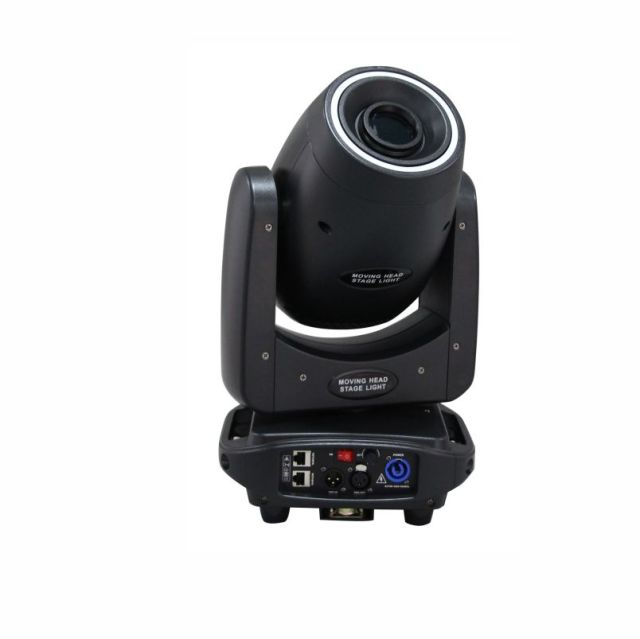

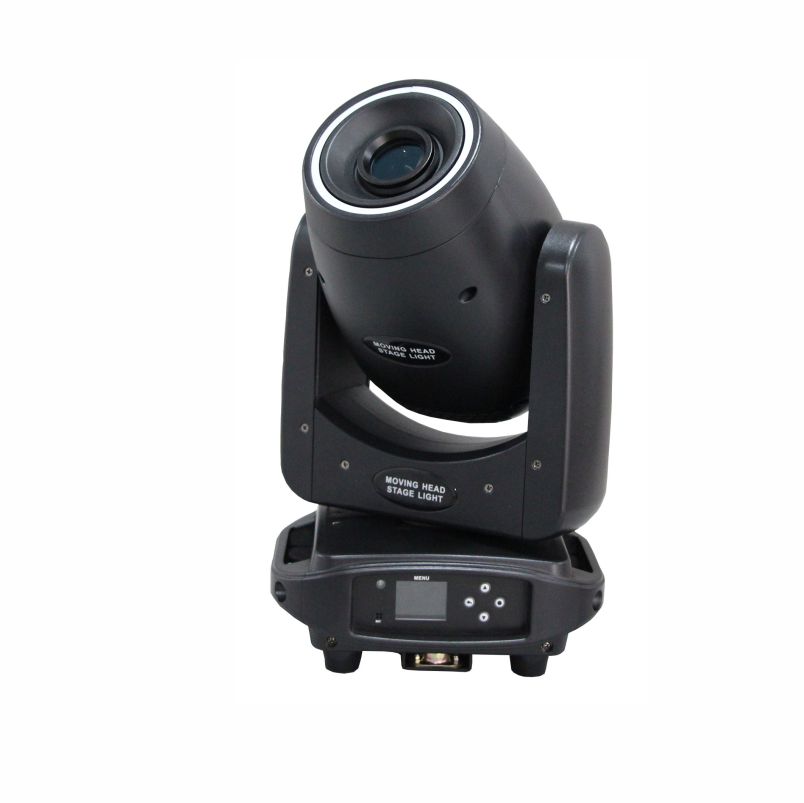

Lightful professional moving head laser is a high-tech product integrating electronics, mechanics and optics. Stable diode, high luminous efficiency, precise positioning, smooth XY axis rotation, fast moving head speed, good sealing performance, dust-proof, and efficient heat dissipation, suitable for various complex performance venues.
Technical Parameter
|
◎Y5-RGB10: R635-3W/G520-3W/B450-4W |
◎Y5-W5000: R635-1.2W/G520-1.3W/B450-3W |
|
◎Scanner: 30Kpps@ILDA 8° Max angle: 50° |
◎Rated voltage: AC100~240V 50/60Hz |
|
◎Power consumption:≤100W |
◎IP33 indoor use |
|
◎Motor: 3 phase 42 motor 2pcs |
◎X axis 540° rotation,Y axis 270° rotation |
|
◎Modulation:analog |
◎Beam diameter and divergence:3*6.5mm;1.5mrad |
|
◎Control mode:music(black out)/ automatic/master-slave/DMX512(6/40CH)/ILDA |

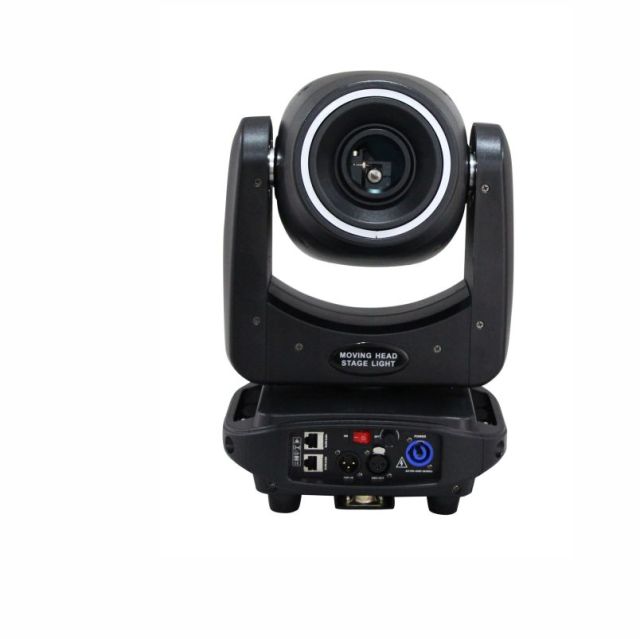

◎Demonstration interface:3 pin DMX512/25DB ILDA |
|
◎Demonstration effect:built-in 140 pattern and 5 pages of animation |
◎DMX effect: Single pattern mode, and with the function of unique blanking,strobe,rotation, movement, billowing, zoom,write in,speed and color etc. |
|
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light. |
◎Application:disco, club, concert, medium indoor venue, festival |
|
◎Carton size: 34.5*23*48cm |
◎Gross weight: 9.5 kg |
|
◎2in1 Flight case size: 55*46*59cm |
◎Gross weight: 38kg |
|
|
|
Technical Parameter
|
Model |
Item name |
Power |
|
Y5-RGB10 |
10W RGB moving head laser |
R635-3W/G520-3W/B450-4W |
|
Y5-W5000 |
3W RGB moving head laser |
R635-1.2W/G520-1.3W/B450-3W |
