Technical Parameter
The Y19 Fat Beam+Wash Moving Head is engineered to meet the rigorous demands of lighting professionals seeking reliable and flexible equipment. As a product from a reputable laser moving head manufacturer, it specifically targets event planners, theatre designers, and system integrators who require both sharp beams and smooth wash capabilities within a compact form factor. Supporting multiple control modes including DMX512 and music-triggered operation, this moving laser light provides essential precision for synchronized shows in dynamic environments such as discos, concert halls, and medium-sized venues.
Equipped with a 2W RGB laser module and a dedicated wash light, this device delivers a 15mm fat beam diameter alongside a consistent 45° wash angle. These detailed laser specifications, combined with bi-directional RDM data transmission, facilitate precise firmware updates and adaptive control. The self-developed structure with X/Y axis rotation up to 540° and 208°, respectively, ensures accurate positioning and out-of-step correction. This technical rigor makes the unit a benchmark among rgb moving head laser light manufacturers for dependable, high-performance lighting outputs.
This moving head laser light is especially suited for entertainment venues requiring efficient, visually engaging lighting setups. Its robust configuration ensures optimal operation in theatre laser light deployments, disco laser lights arrangements, and large scale event productions. The unit enhances artistic lighting workflows with compact dimensions and lightweight design, enabling easy integration into existing LED and control systems. Its compatibility with disco lights laser environments positions it as a pivotal tool for producing immersive atmospheres through controlled color mixing and effect synchronization.
The Y19 is engineered with an all-in-one modular design, allowing seamless integration into complex lighting rigs managed by professionals who rely on consistent system performance. As a product of a laser moving head manufacturer with in-house R&D, it features unified circuitry and dedicated firmware that prevent typical component mismatches seen in assembled devices. The robust casing and lightweight frame contribute to efficient rigging and transportation, which is critical for frequent deployment in events with demanding timelines and spatial constraints. This adherence to structural excellence aligns the device with stringent industry expectations for theatre laser light equipment.
Users of the Y19 benefit from enhanced operability afforded by multiple control modes, including master-slave and DMX512, offering flexibility to adapt to varying production requirements. The accurate automatic correction on axis movement minimizes errors, sustaining consistent beam positioning throughout extended shows. Combined with energy efficiency reflected in its 80W power consumption and durable LED elements, this moving laser light enables sustained performance with minimal downtime. These features establish the device as a reliable choice for disco lights installations that prioritize precision and user-friendly control interfaces.
Within nightlife settings, the Y19 serves as a critical component for generating compelling visual effects. Nightclubs and discos utilize this moving laser light directly to elevate atmosphere via vivid, sharply defined beams and wide wash coverage. Its compatibility with disco lights and disco laser lights system standards ensures smooth integration into established DMX networks. Technical advantages such as stable output and fast X/Y axis rotation allow lighting engineers to design dynamic sequences that respond to music beats, efficiently coordinating multiple units in master-slave configurations for immersive client experiences.
In professional theatre or mid-sized indoor venues, this product fulfills the demand for versatile lighting fixtures capable of supporting thematic illumination schemes. The Y19’s capabilities as a theatre laser light complement spotlight and ambient wash systems, enabling fine adjustments to color gradients and beam focus. Its integration into theatre infrastructures benefits from precision control and firmware upgradeability via RDM protocols, which supports evolving production requirements. Lighting directors optimize their setups by incorporating this rgb moving head laser light manufacturer’s solution to balance artistic vision with technical functionality.
|
◎Y19-W2000 |
Configuration：2W-RGB（R600mW/G500mW/B1000mW） |
|
◎Rated voltage：AC 110~220V 50/60Hz；Power consumption：80W@220V |
◎fat beam diameter：φ15mm |
|
◎modulating signal：analog |
◎LED lamp：5W-3535RGBW ×6pcs |
|
◎Control mode：music/auto/ DMX512/ master-slave（option） |
◎wash angle：45° |
|
◎X axis/Y axis：X axis 540°（16-bit）,Y axis 208°（16bit）, XY axis Position out-of-step automatic correction function |
◎DMX Channel： 17CH |
|
◎Electronic control technology：①RDM data bidirectional transmission②DMX512 upgrade |

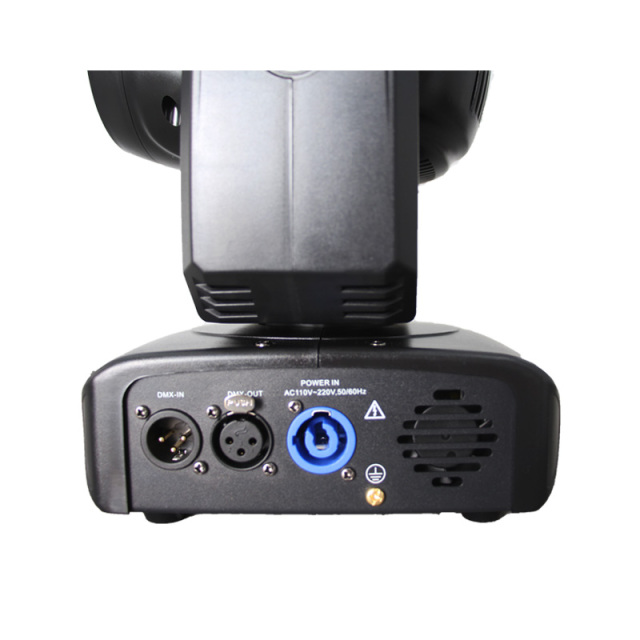

◎control interface：XLR3 pin DMX |
|
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light. |
◎Application:disco, club, concert, medium indoor venue, festival |
|
◎carton case：34.5*29*57.5cm（2 in 1）57.5*34.5*57.5cm（4 in 1） |
◎N.W./G.W.: ：6.9kg/8kg（2 in 1） 16kg(4in1) |
|
|
Technical Parameter
|
Model |
Item name |
Power |
|
Y19- W2000 |
2W fat beam+wash moving head |
R600mW/G500mW/B1000mW |
QUALITY CONTROL
FAQ
What control options are available for the Y19 Fat Beam+Wash Moving Head?
Our Y19 model supports multiple control modes including music, auto, DMX512, and optional master-slave control. These versatile options are designed for seamless integration into professional lighting setups, making it an ideal choice among disco laser lights and stage lighting systems.
Can you customize the laser modules or control programs for specific projects?
We have an in-house R&D team dedicated to developing proprietary circuits and DMX built-in programs. While the Y19 features a standard 2W RGB laser module, we also offer customization services for projects requiring specialized rgb moving head laser light manufacturers solutions to meet specific technical requirements.
What are the installation and environment requirements for using this moving laser light?
The Y19 Fat Beam+Wash Moving Head is designed for dry, low-dust environments operating between 0 and 35°C. It is suitable for medium indoor venues, discos, and concerts. Proper ventilation and stable mounting ensure optimal performance and durability during long-term professional use.
How do you handle shipping and logistics for international business customers?
We package the Y19 efficiently in carton sizes for either 2-in-1 or 4-in-1 units, with net weights ranging from 6.9kg to 16kg. Lightful Laser exports worldwide and provides professional support to ensure timely delivery and secure transport of our moving laser light products to your location.
