Y15/6W 10W 12W 15W RGB Moving Head Laser Light

Lightful professional moving head laser is a high-tech product integrating electronics, mechanics and optics. The lamps are stable and reliable, high luminous efficiency, precise positioning, smooth XY axis rotation, fast moving head speed, and can be called the Tesla of moving head laser.
The second-generationmoving head laser has good sealing performance, dust-proof, and efficient heat dissipation, suitable for various complex performance venues.

Technical Parameter

Model

Y15-RGB15/Y15-RGB12/Y15-RGB10/Y15-W6000

Description

15W RGB moving head laser/12W RGB moving head laser/10W RGB moving head laser/6W RGB moving head laser

Configuration

R6355-4.5W/G525-5W/B450-6.5W/R635-4W/G525-4W/B450-4W/R635-3W/G525-3W/B450-4W/R635-1.6W/G525-1.6W/B450-3W

model::

Y15-RGB15

Y15-RGB12

Y15-RGB10

Y15-W6000

Get The Latest Quote

Add to Quote List View Quote List

Description

◎Y15-W6000: R635-1.6W/G525-1.6W/B450-3W	◎Y15-RGB10: R635-3W/ G525-3W/ B450-4W
◎Y15-RGB12: R635nm-4W/G525-4W/ B450nm-4W	◎Y15-RGB15: R635nm-4.5W/G525-5W/ B450nm-6.5W
◎Power consumption: 250W max	◎Operation voltage:AC100-230V,50/60Hz
◎Scan system: 40kpps scanner, max± 30° Horizontal scan: 540° (16 bit precision scan) Vertical scan: 270° (16 bit precision scan) Automatic error correction reset function	◎Modulation: Analog
◎Divergence: 1.5mard	*◎Animation laser beam diameter: 15W 12W 10W laser beam diameter 66.5mm; 6W laser beam diameter 36.5mm*

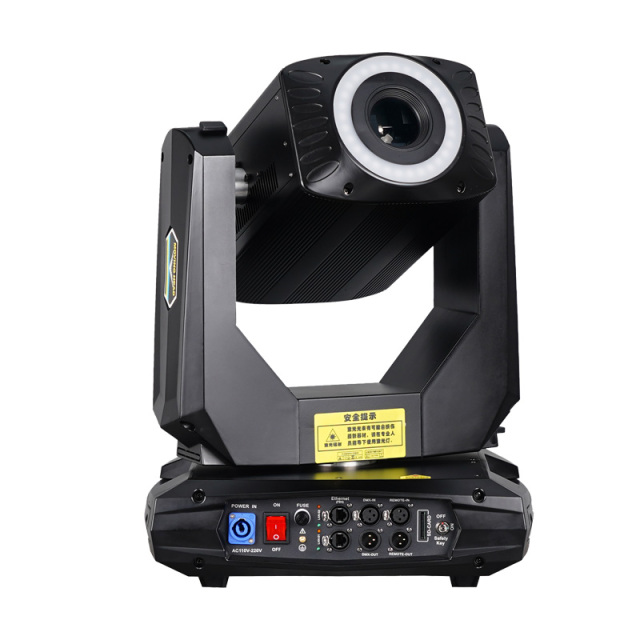

◎Control interface: 3 pin DMX512, 25DB ILDA,SD card	◎Control mode: DMX512(6/40CH), auto, sound, master-slave, ilda, SD card
◎DMX effect: pattern can output the function of unique blanking, strobe, rotation, movement, zoom, write in, speed and color etc.	◎Control technology: ① RDM data bidirectional transmission ② temperature control system ③ DMX512 upgrade ④ SD card upgrade

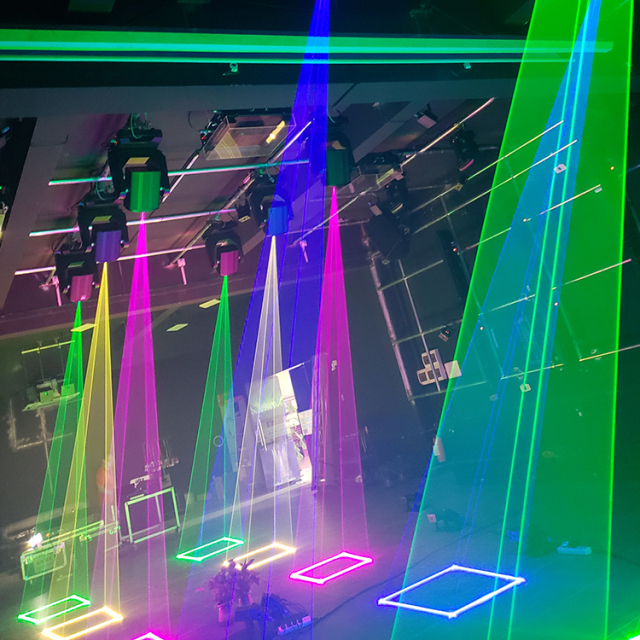

◎Operating requirement: dry, less dust, 0~35℃(environmental temperature), will reduce the attenuation of the diode and extend the life of the light.	◎Application: disco, club, medium indoor venue, theatre, etc.
*◎Packing: 524170cm*	◎ N.W/G.W:21/24kg

Technical Parameter

Model	Item name	Power
Y15-RGB15	15W RGB moving head laser	R635-4.5W/G525-5W/B450-6.5W
Y15-RGB12	12W RGB moving head laser	R635-4W/G525-4W/B450-4W
Y15-RGB10	10W RGB moving head laser	R635-3W/G525-3W/B450-4W
Y15-W6000	6W RGB moving head laser	R635-1.6W/G525-1.6W/B450-3W
