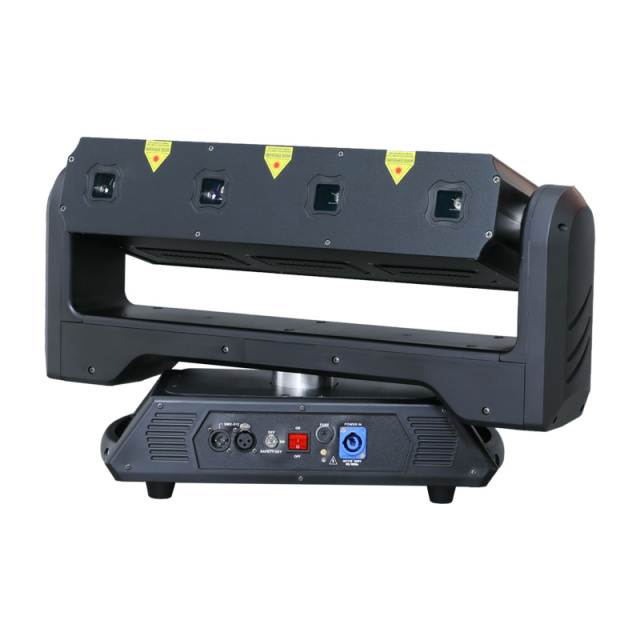

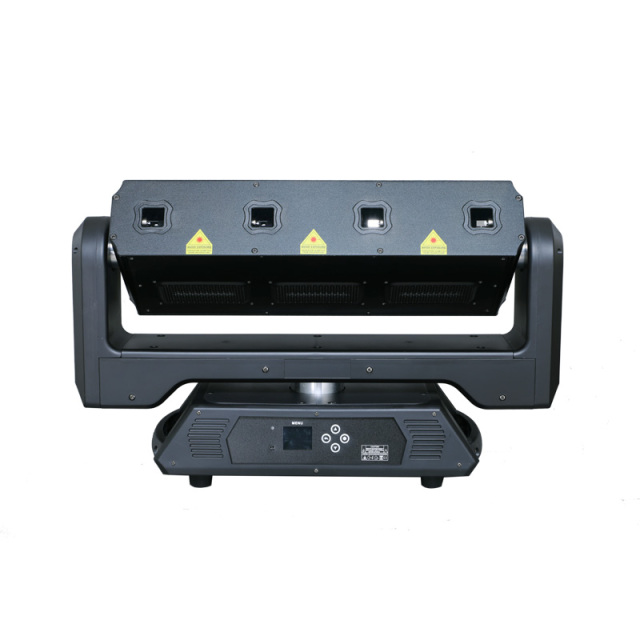

Y14 RGB 8W moving head animation laser Bar

  • When the animation laser bar can be shaken up, we will find that the matrix arrangement of commonly used laser has more angle changes, which can achieve different angle modeling with the stage design and match different levels of the picture.
  • Horizontal X axis 540° moving head, vertical Y axis infinity rotation, laser vibrator 45° scanning angle, rich built-in graphic material changes, support graphic zoom, rotation, movement, color change, compared with the single beam laser bar and increase a lot of different effects.

 Technical Parameter

Model
Y14-W8000
Description
8W RGB moving head animation laser Bar
Configuration
W2000 *4+LED0.2*240PCS
model::
Y14-8W RGB
  • Y14 RGB 8W moving head animation laser Bar
  • Y14 RGB 8W moving head animation laser Bar
  • Y14 RGB 8W moving head animation laser Bar
  • Y14 RGB 8W moving head animation laser Bar
  • Y14 RGB 8W moving head animation laser Bar

Description


◎Y14-W8000:

Configuration: W2000x4pcs (R200+G100+B200)+ 5050 strobe(dot matrix)

◎ Rated voltage: AC 110~220V 50/60Hz; 170W@AC220V

◎Laser power: W2000mW x 4pcs

◎Scan system: 20kpps x 4pcs

◎ Laser color : RGB

◎Modulation: analog

◎Control mode: DMX512/Auto/Sound/ master - slave

◎Channel : 42CH/120CH/144CH

◎X :0-540° rotation

◎Y :Infinity rotation

◎Interface: XLR 3pin DMX-512 Interface (IN/OUT)

◎ Scanning system: precision stepping motor◎ Electric control technology: ①RDM two-way data transmission ② intelligent temperature control system ③DMX512 upgrade

◎ Cooling system: low noise air cooling

◎ Working environment: indoor

 ◎Operating temperature: 0~35℃

◎Applicable: disco, club, KTV, pub, bar, family party, etc.

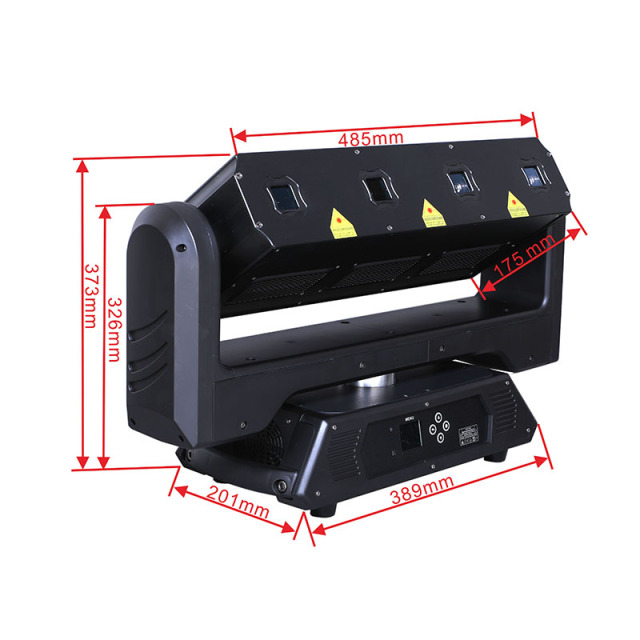

◎ Packaging size: 69*41*29.5cm

◎N.W/G.W: 13.6/16.4kg

 Technical Parameter

Model

Item name

Power

Y14-W8000

8W RGB moving head animation laser Bar

W2000 *4+LED0.2*240PCS
