Technical Parameter
◎Y13-W3000 |
Configuration:laser W1000 *3pcs + LED 3W*4+ LED 0.2W*240PCS 5050 strobe (dot matrix) |
◎Rated voltage: AC 100-240V 50/60Hz;100W@AC220V |
◎laser source:W1000mW × 3pcs |
◎LED1:3W white × 4pcs |
◎LED2:0.2W RGB × 240pcs |
◎Control mode: Sound/ Automatic/master-slave/DMX512 |
◎Control interface: 3 pin DMX512 |
◎DMX channel:20CH/31CH/70CH |
◎Effect: 16 kinds of Auto dynamic effect, 16 kinds of voicecontrolled dynamic effect |
◎X : 0-540° rotation |
◎Y : Infinity rotation |
◎ Z : 0-140° rotation |
◎ Scanning system: precision stepping motor |
◎ Electronic control technology: ①RDM data bidirectional transmission ②DMX512 upgrade |
◎ Cooling system: low noise air cooling |

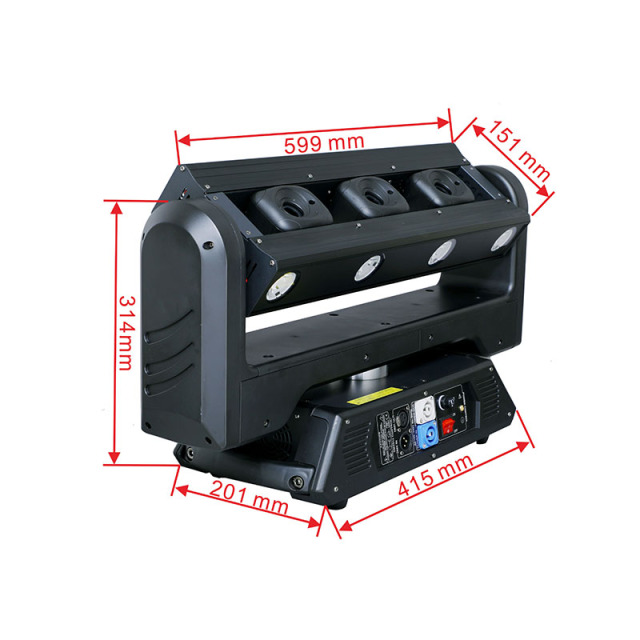

◎ Working environment: indoor ◎Carton size: 30*34*15cm |
◎N.W:12KG /G.W:17KG |
|
Technical Parameter
Model |
Item name |
Power |
Y13-W3000 |

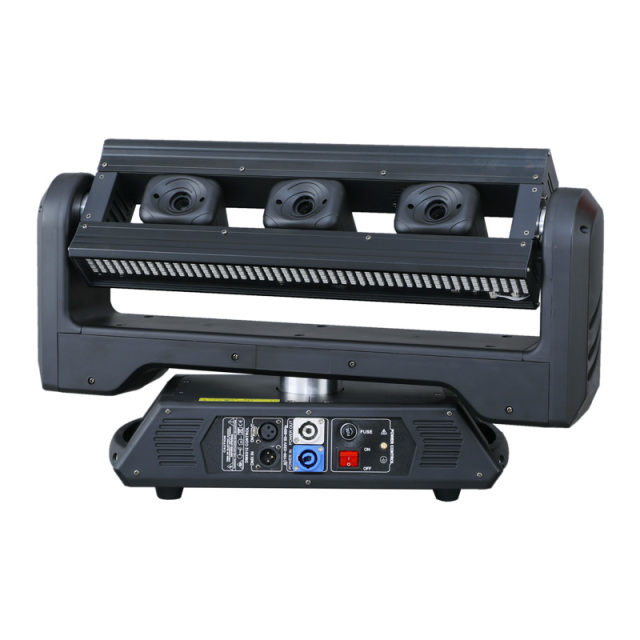

1000mW RGB Moving head 3 in 1 laser |
W1000 *3pcs+ LED 3W*4+LED 0.2W*240PCS |
