Technical Parameter
1.Well-designed circularstructure, multiple light on the circle can be combined to do various effects such as running lights, strobe and other effects.
2. The combination oflaserand popular fan light, the sharpness of laser light, and the softness of LED.
3. The fanlightmodule can be removed and replaced by other light.
|
◎X8-W36 W3000(R700mW+G800mW+B1.5W)*12pcs |
◎X8-W24 W2000(R500mW+G400mW+B1.2W)*12pcs |
|
◎X8-W36F W3000(R700mW+G800mW+B1.5W)*12pcs+LED |
◎X8-W24F W2000(R500mW+G400mW+B1.2W)*12pcs+LED |
|
◎Rated voltage:100V-240V 50/60 Hz ≤400W |
◎Divergence: 3*6.5mm：1.5mrad |
|
◎Scanning system:36W +25kpps , 24W +20Kpps, optical angle: max±25° |
◎Channel:27CH/241CH/313CH;38CH/252CH/324CH |
|
◎Control mode: Automatic/ DMX512/ master-slave |
◎Control Interface:3 Pin DMX512,art-net |
|
◎Control technology: ① RDM data bidirectional transmission ②temperature control system |
◎Temperature:dry, less dust, 0~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light. |
|
◎Application: indoor projects,TV show. |

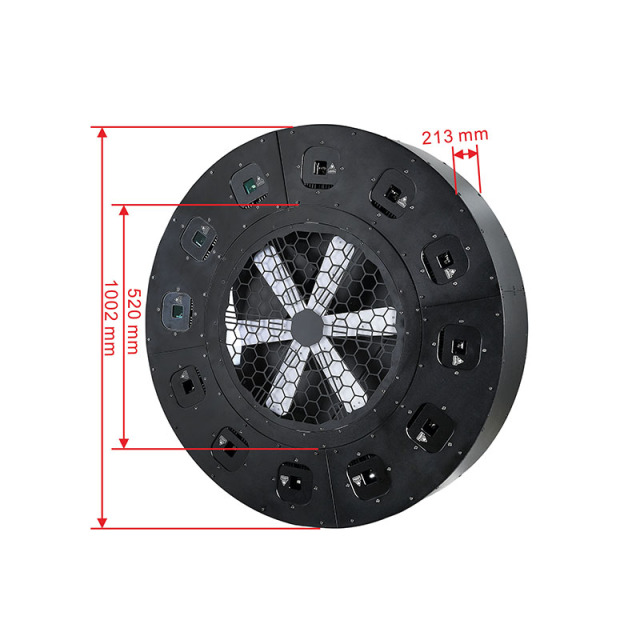

◎Flight case: 109*109*63cm |
|
◎N.W/G.W: 55/105KG |
|
|
|
|
Technical Parameter
|
Model |
Description |
Configuration |
|
X8-RGB36 |
36W RGB (12 head) matrix laser light |
W3000（R700mw+G800mw+B1.5W）x 12pcs |
|
X8-RGB24 |
24W RGB(12 head)matrix laser light |
W2000（R500mW+G400mW+B1.2W）x12pcs |
|
X8-RGB36F |
36W RGB (12 head) matrix laser light +LED fan light |
W3000（R700mW+G800mW+B1.5W）*12pcs+LED |
|
X8-RGB24F |
24W RGB (12 head) matrix laser light +LED fan light |
W2000（R500mW+G400mW+B1.2W）x12pcs+LED |
