This multi pule fixture with advanced square appearance design, integrates the LED via dmx and sharp effect of laser light via dmx & ilda, perfect for varieties of venues.
Technical Parameter
|
◎Laser power: 4W RGB x 5pcs + LED 736pcs x 0.2W |
◎Operation voltage: 100V-240V 50/60 Hz |
|
◎Power consumption: 800W max |
◎Beam diameter: 3*6.5 mm |
|
◎Divergence: 1.5mrad |
◎Scan system: 30kpps, max±35° |
|
◎Control mode: sound/ automatic/ DMX512(38/112/142CH)/ master-slave/ ILDA |

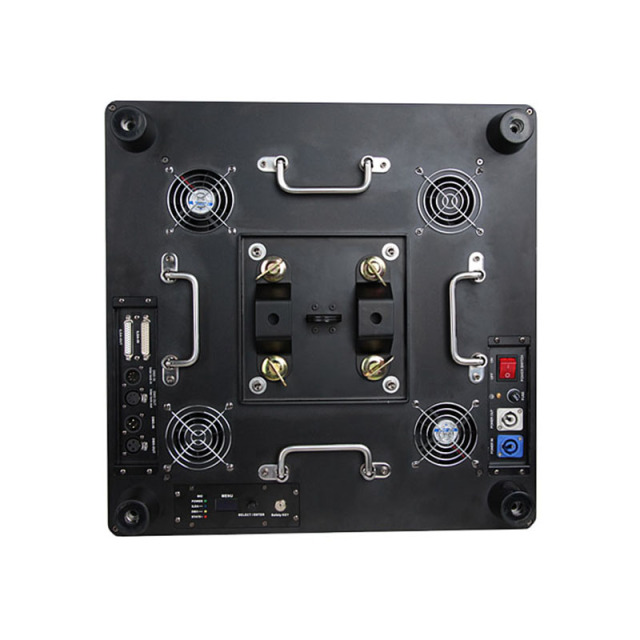

◎Control Interface:3 pin DMX512、5 pin DMX512、ILDA DB25 |
|
◎Control technology: ①RDM data bidirectional transmission ②temperature control system ③DMX512 upgrade |
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature), will reduce the attenuation of the diode and extend the life of the light. |
|
◎Application: disco, club, medium indoor venue, theatre, concert, etc. |

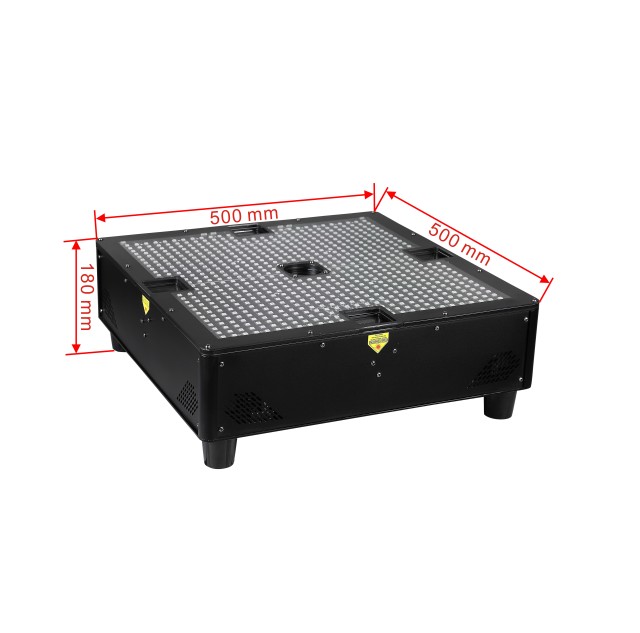

◎Packing:73*61*37cm N.W/G.W:28KG/46Kg |
|
|
|
Technical Parameter
|
Model |
Description |
Configuration |
|

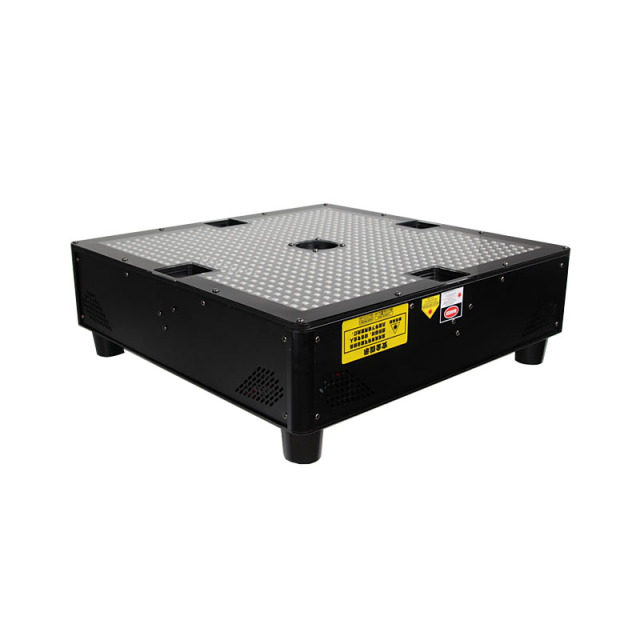

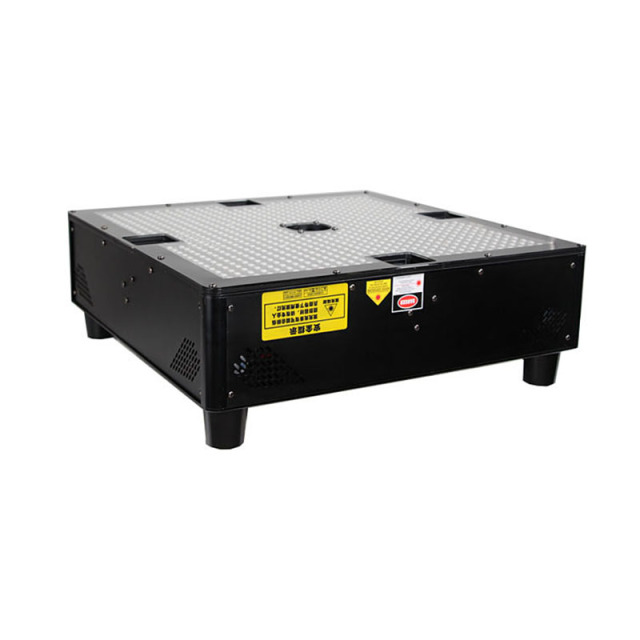

X5-W20000 |
20W RGB magic cube laser |
W4000（R1+G1+B2）x5pcs+LED RGB 0.2W x736 |
