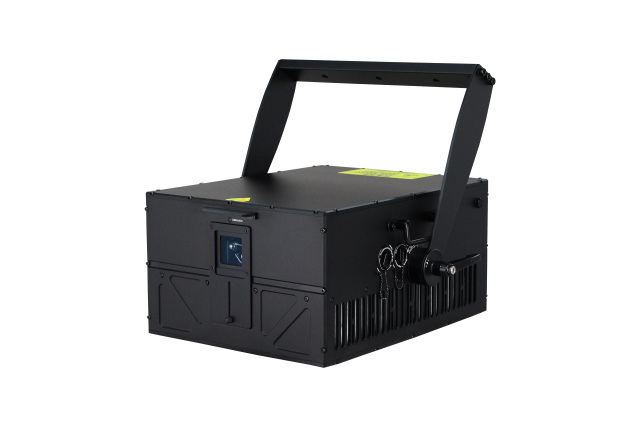

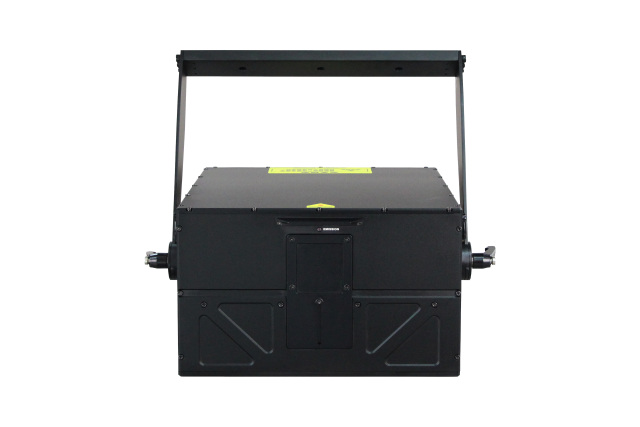

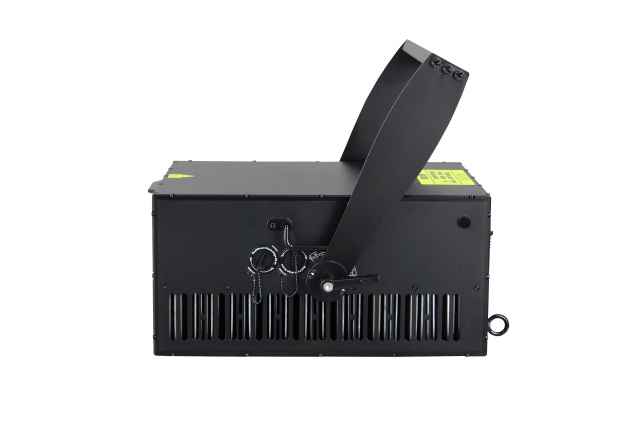

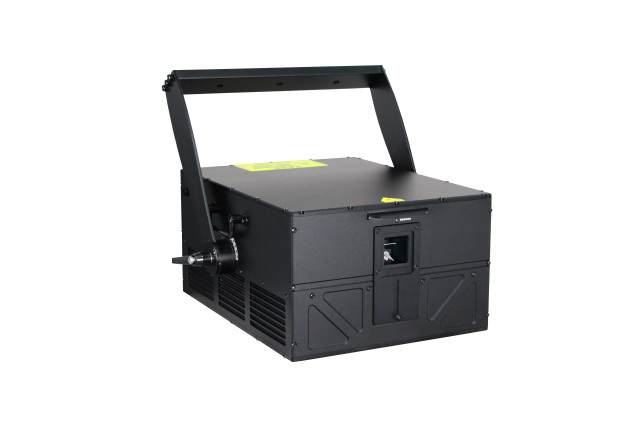

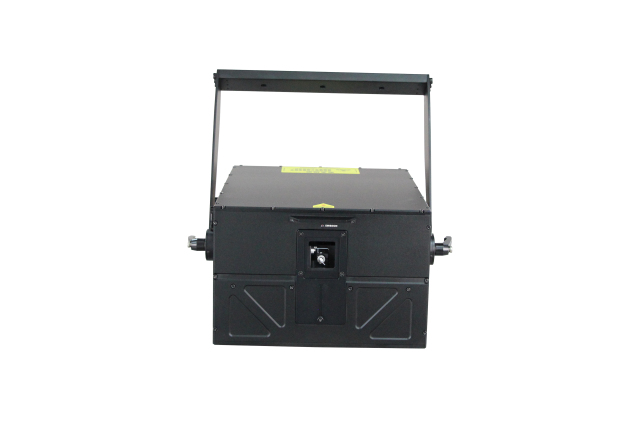

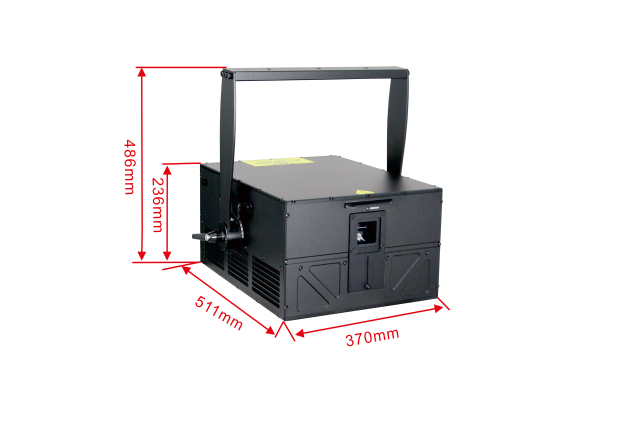

High-power waterproof laser light for ultra-large performance occasions. Laser power is optional from 45W to 60W. It can meet the needs of many occasions, and it can also have a very practical IP65 protection level, perfect for water shows, buildings, mountains, northern lights and even outdoor stage performances, etc.
|
◎R4-RGB60：R635-16W/G525-18W/B455-26W |
◎R4- RGB50：R635-13W/G525-16W/B455-22W |
| ◎R4- RGB45：R635-15W/G525-15W/B455-15W |
◎Rated voltage：AC100~240V 50/60Hz |
| ◎Power consumption：≤800W | ◎Scan system：45W 40Kpps, 50W 60W 30Kpps high speed scanner，scan angle MAX±30°, input signal ±5V； |
| ◎Modulation：analog | ◎Beam diameter：9*6.5mm, divergence 1.2mrad |
|
◎Integrated hardware：original Pangolin FB4 |
◎Control mode：auto、DMX512、Artnet、Ethernet |
| ◎IP rate:IP65 | ◎Demonstration effect: built-in more than 2000 patterns. |

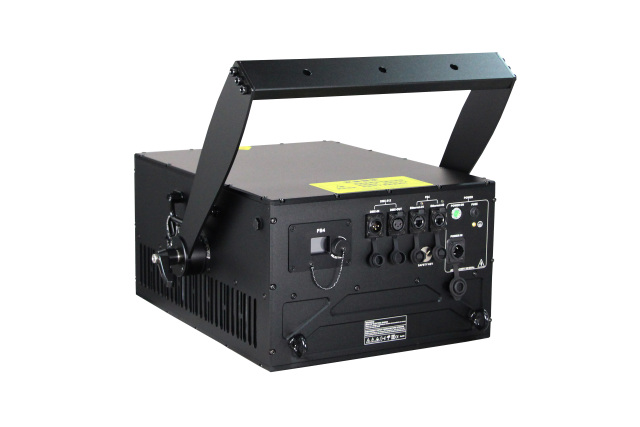

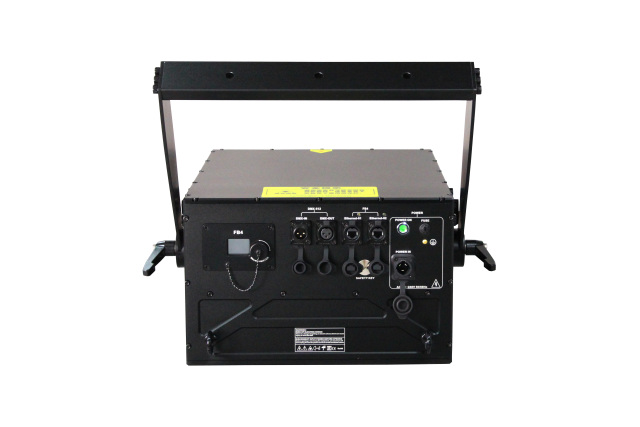

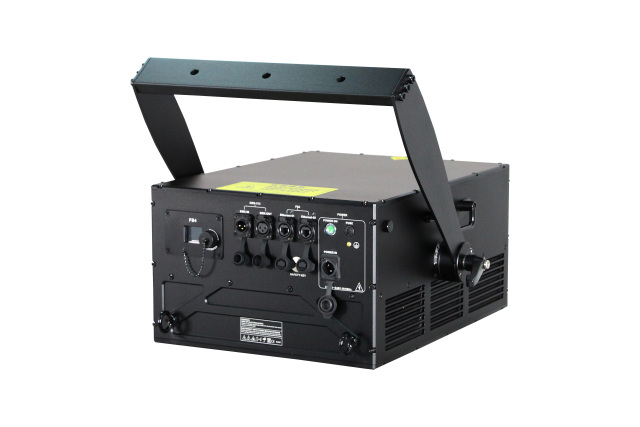

| ◎Interface：waterproof power in, waterproof dmx in/out, waterproof ethernet in/ out | ◎Working environment: The temperature is at -20~40℃. |
| ◎Protection level: IP65 |
◎Suitable venues: concerts, stadiums, advertising promotions, electronic music festivals, live performances, etc. |
| ◎Packaging dimensions of flight case: 62*55*47cm | ◎Net/Gross weight: 34.5/58kg |
 |
 |
|
Model |
Item name |
Laser power |
|
R4-RGB60 |
60W RGB outdoor laser |
R635-16W/G525-18W/B455-26W |
|
R4-RGB50 |
50W RGB outdoor laser |
R635-13W/G525-16W/B455-22W |
|
R4-RGB45 |
45W RGB outdoor laser |
R635-15W/G525-15W/B455-15W |
