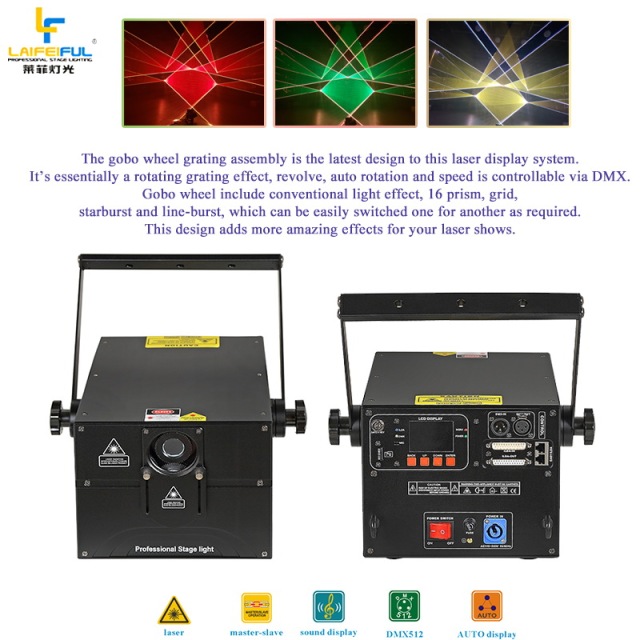

The gobo wheel grating assembly is the latest design to this laser display system. It’s essentially a rotating grating effect, revolve, auto rotation and speed is controllable via DMX.
Gobo wheel include conventional light effect, 16 prism, grid, starburst and line-burst, which can be easily switched one for another as required.
This design adds more amazing effects for your laser shows
|
① Conventional light effect |
② 16 prism |
| ③ Water effect light | ④ Line- burst effect |
| ⑤ Starburst | ⑥ Single gobo rotation |
| ⑦ All gobos switch rotation |
|
◎R2-W6000:R635-1.6W/G525-1.6W/ B450-3W |
◎R2-RGB10:R635-3W/G525-3W/B450-4W |
| ◎R2-RGB12:R635-4W/G525-4W/B450-4W |
◎R635-4.5W/G525-5W/B450-6.5W |
| ◎Rated Voltage: AC100~240V 50/ 60Hz;250W |
◎IP rate: IP33 |
| ◎Scanner: 45kpps fast scanning system, scan angle: max ± 30°; | ◎Modulation: analog |
|
◎Beam diameter and divergence: 6*6.5mm; 1.5mrad |
◎Control mode: sound, auto, master-slave, DMX512 (24CH/31CH/56CH), SD card, ILDA |
| ◎Control Interface: 3 pin DMX512, 25DB ILDA, EASY ILDA | ◎Demonstration effect: built-in 160 pattern, SD card unlimited storage. |
|
◎DMX effect: double pattern mode, and with the function of unique blanking, strobe, rotation, movement, zoom, write in, speed and color etc. |
◎Control technology: ①RDM data bidirectional transmission ② SD card online upgrade ③temperature control system ④DMX512 upgrade |
|
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature), will reduce the attenuation of the diode and extend the life of the light. |
◎Application: disco, club, medium indoor venue, theatre, etc. |
|
◎Size: 74.5*48*31cm(2in1) |
◎N.W./G.W: 27/33kg |
 |
 |
|
Model |
Item name |
Laser power |
|
R2-W6000 |
6W RGB gobo laser | R635-1.6W/G525-1.6W/B450-3W |
| R2-RGB10 | 10W RGB gobo laser | R635-3W/G525-3W/B450-4W |
| R2-RGB12 | 12W RGB gobo laser | R635-4W/G525-4W/B450-4W |
| R2-RGB15 | 15W RGB gobo laser | R635-4.5W/G525-5W/B450-6.5W |
