Feature
D7 is a small animation laser tailor-made for outdoor projects. IP65 full-angle protection level, get rid of the shackles of conventional rain cover, all kinds of environments and arrangements of various angles are not affected. So you can easily achieve special effects such as laser matrix, optical network, and laser modeling in the night tour project.
Lightful waterproof laser is widely used in urban lighting, landscape lighting, and cultural tourism. Our company has a technical team with rich on-site experience, strong guarantee, and quick response before and after sales.
The laser adopts the intelligent temperature control system independently developed by our company to ensure the normal use under the environment of -20~40°C.
Technical Parameter
Feature
D7 is a small animation laser tailor-made for outdoor projects. IP65 full-angle protection level, get rid of the shackles of conventional rain cover, all kinds of environments and arrangements of various angles are not affected. So you can easily achieve special effects such as laser matrix, optical network, and laser modeling in the night tour project.|
◎D7-RGB15: R635-4.5W/G520-5W/ B450-6.5W |
◎D7-RGB10: R635-4W/G520-4W/ B450-4W |
|
◎D7-RGB10: R635-3W/G520-3W/ B45 0-4W |
◎Rated Voltage: AC110~220V 50/60Hz; |
|
◎Power consumption：360W |
◎Scanner: 40K fast scanning system, scan angle:max±30°;Input signal:±5V;Linearity distortion<2% |
|
◎Modulation:analog |
◎Beam diameter and divergence: 6*6.5mm;1.5mrad |
|
◎Control mode: auto, master-slave, DMX512(5/17/18/27/52CH), ILDA |

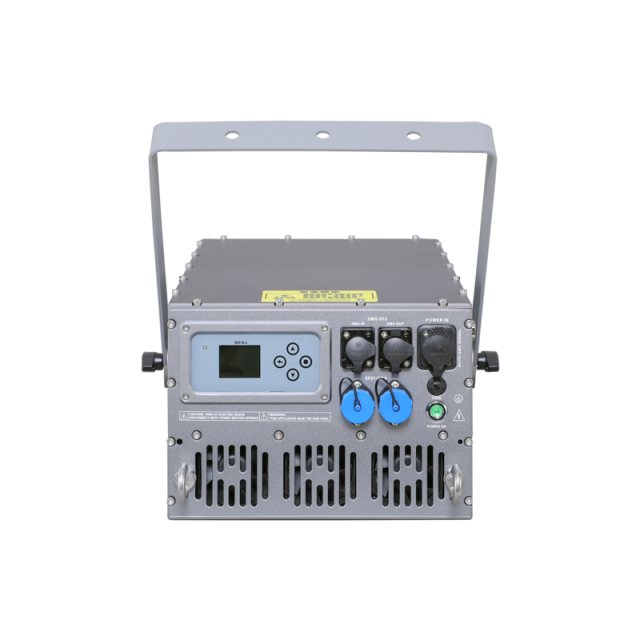

◎Control Interface:waterproof 3 pin Dmx512,waterproof DB25 ILDA |
|
◎Demonstration effect: built-in 160 patterns |
◎DMX effect: double pattern mode,and with the function of unique blanking,strobe, rotation, movement, zoom, write in,speed and color etc. |
|
◎Control technology: ①RDM data bidirectional transmission ② temperature control system ③DMX512 upgrade |
◎IP rate:IP65(outdoor) |
|

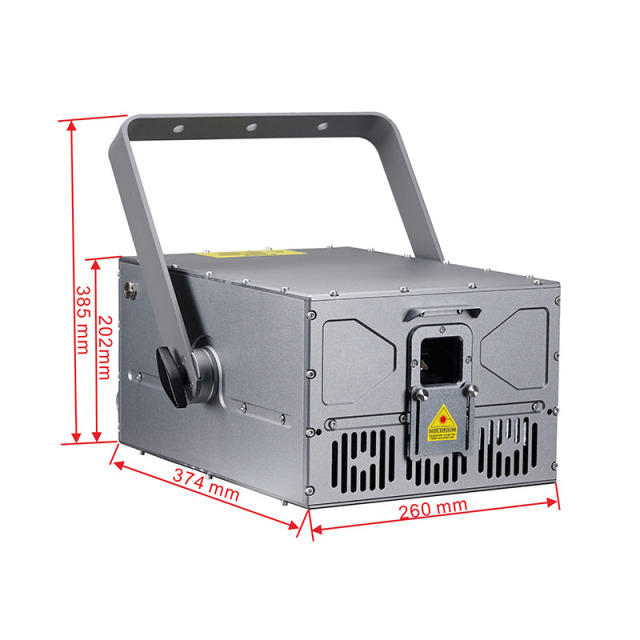

◎Size: 62*42*42cm(flight case) N.W/G.W: 18.5/32kg |
◎Size:51*42.5*28.5cm(carton) N.W/G.W:18.5/22kg |
|
|
|
Technical Parameter
|
Model |
Item name |
Laser power |
|
D7-RGB15 |
15W RGB outdoor laser |
R635-4.5W/G525-5W/B450-6.5W |
|
D7-RGB10 |
10W RGB outdoor laser |
R635-3W/G525-3W/B450-4W |
|
D7-RGB12 |
12W RGB outdoor laser |
R635-4W/G525-4W/B450-4W |
