Feature
Lightful R&D high-power outdoor moving head laser light, IP65 protection level, it is designed to protect the equipment from harsh environmental conditions and elements such as heat, cold, rain, snow, sand and dust, suitable for permanent indoor & outdoor installations in almost any climate and environment.
D3 pan 540° and tilt 270° rotation, perfectly solve the demands of laser surrounding the scene.
The fully automatic temperature control management ensures that protected equipment runs in ideal conditions and extends its life span.
Technical Parameter
Product Description
The D3 20W/60W Outdoor moving head laser is specifically engineered for professional lighting technicians and event organizers requiring reliable, high-intensity laser effects in both indoor and outdoor environments. As a solution from expert laser manufacturers, it caters to large-scale venues, festivals, and DJ setups needing seamless integration of moving head laser technology with advanced control options. This device is ideal for users demanding both durability and performance, combining state-of-the-art weatherproofing for extended outdoor deployment and compatibility with prevalent lighting control protocols. The D3 supports DMX512, master-slave, and FB4 modes to enable flexible operation in complex production environments where precise beam manipulation is essential.
Designed with robust engineering standards, the D3 moving head laser light features dual-axis motion with 540° pan and 270° tilt, facilitating expansive coverage and dynamic beam positioning. It incorporates high-power rgb laser light options ranging from 20W green laser variants to 60W RGB, optimized for clarity and brightness within demanding visual settings. The device employs a 30kpps landmark scanner with ±30° max scan angle and analog modulation to deliver smooth, high-definition beam patterns. Its IP65-rated enclosure guarantees resistance against dust and water, ensuring operational stability outdoors. Additionally, integrated automatic temperature control maintains optimal performance metrics, extending service intervals and reducing maintenance. Power consumption remains efficient at ≤1200W, providing a balanced energy profile for sustained usage.
The D3 series, including the 30W RGB moving head laser model, is widely applicable across diverse event production and architectural illumination applications. Its weatherproof construction and versatile control protocols make it indispensable for challenging outdoor festivals, corporate events, and architectural projection mapping projects that require reliable laser graphics under varied climatic conditions. This moving head laser integrates meticulously with existing lighting networks, facilitating synchronized displays and audio-reactive effects that elevate visual dynamics. With its multi-mode control capabilities, users achieve high customization and responsiveness vital for commercial entertainment venues and advertising installations, maximizing ROI and operational uptime in competitive industrial scenarios.
The structural design of the D3 incorporates an IP65-rated heavy-duty housing that protects sensitive laser components against environmental hazards, supporting year-round outdoor deployment. The modular design of this moving head laser allows straightforward integration with standard DMX512 and FB4 control systems used by professional lighting engineers. The dual-axis gimbal system providing 540° pan and 270° tilt rotation grants extensive coverage flexibility, while internal automatic temperature management safeguards laser diodes and scanning mechanisms to extend product lifespan. This thoughtful engineering enables easy maintenance and scale-up within complex lighting rigs, promoting reliability and reducing downtime. As a product from established laser equipment supplier networks, it meets rigorous industrial standards for performance and safety compliance.
In operation, the D3 offers remarkable beam stability and visual output consistency, driven by high-power rgb laser light sources tuned for brightness and color fidelity. Its multi-mode functionality supports automated sequences, sound activation, and precise external control via DMX512 or ethernet protocols, enabling dynamic customization suited for professional workflows. The user interface and system connectivity simplify setup processes and integration with digital lighting consoles, saving valuable time in event preparation. Additionally, the device's robust build and energy efficiency yield reduced operational costs, making it a financially sound investment for production companies focusing on dependable, scalable moving head laser solutions backed by professional laser manufacturers.
In large-scale outdoor festival environments, the D3 outdoor moving head laser plays a crucial role by delivering vivid, high-penetration rgb laser light displays capable of covering vast audience areas. This product’s IP65 weatherproof rating ensures uninterrupted operation despite exposure to rain, dust, or heat, proving key for open-air stage setups. Technical support for multiple control protocols like DMX512 and FB4 enables synchronization with lighting chases, sound triggers, and show automation platforms commonly used in festival production. As a result, event operators can achieve precise beam movements and color effects across dynamic show sequences, enhancing experiential impact while maintaining system reliability and compliance with outdoor event safety standards. Integration into lighting bars or arrays, including configurations such as the 6 heads moving head laser bar, further expands spatial effects versatility.
Within architectural lighting and high-visibility advertising contexts, the 30W RGB moving head laser provides significant value by projecting detailed, colorful beams onto facades and display surfaces. Its precise pan and tilt movement capabilities allow tailored laser patterns to complement structural features, enhancing brand visibility or landmark aesthetics. The device's compatibility with master-slave control setups permits coordinated operation across multiple units, crucial for large installation projects demanding uniform beam alignment. The ruggedized housing supports longevity in external installations while maintaining consistent output intensity approved by lighting design regulations. This moving head laser seamlessly integrates with automated lighting management systems, facilitating remote monitoring and real-time effect adjustments in sophisticated commercial environments.
|
◎D3-RGB60: R635-16W/G525-18W/ B455-26W |
◎D3-RGB50: R635-13W/G525-16W/ B455-22W |
|
◎D3-RGB40:R635-12W/G525-13W/ B455-18W |
◎D3-G20: G525-20W |
|
◎Rated voltage:AC100~240V 50/60Hz |
◎Power consumption: ≤1200W |
|
◎Scanner: 30kpps landmark scanner scan angle: Max ±30°; Input signal: ±5V; Linearity distortion<2%) |
◎Modulation: analog |
|
◎Beam diameter and divergence: 8*6.5mm;1.2mrad |
◎Control mode: Automatic/ DMX512(6CH/33CH)/master-slave/ethernet/FB4(15CH) |
|
◎Control interface:Waterproof DMX512 interface, waterproof ethernet |
◎Rotation: X axis 540° Y axis 270° |
|
◎IP rate:IP65(outdoor) |
◎Application:cityscape, architectural landmark, laser show, advertising etc. |
|

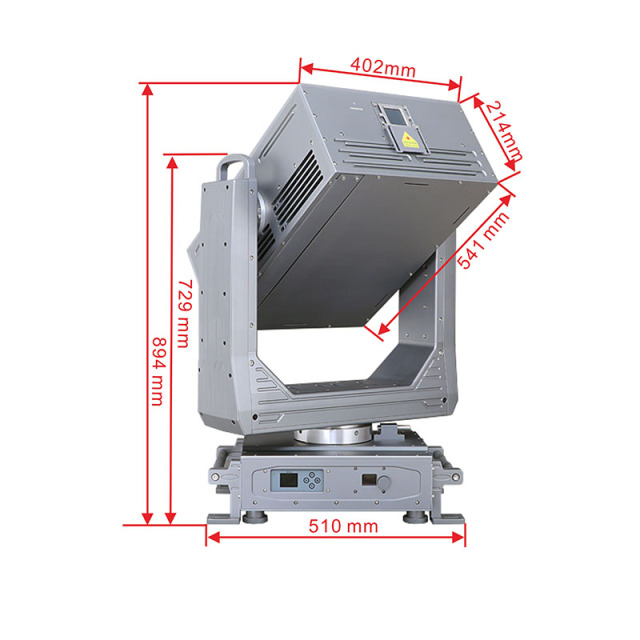

◎Size:64*43*111cm |
◎N.W./G.W.: 83kg/116kg |
|
|
|
Technical Parameter
|
Model |
Item name |
Laser power |
|
D3-RGB60 |
60W RGB moving head laser |
R635-16W/G525-18W/B455-26W |
|
D3-RGB50 |
50W RGB moving head laser |
R635-13W/G525-16W/B455-22W |
|
D3-RGB40 |
40W RGB moving head laser |
R635-12W/G525-13W/B455-18W |
|
D3-G20 |
20W Green moving head laser |
G525-20W |
QUALITY CONTROL
What control options are available for integrating the D3 Outdoor moving head laser into existing systems?
We offer multiple control modes for the D3, including DMX512, master-slave, ethernet, and FB4. These options ensure seamless integration into your professional lighting setups, providing flexible operation suited for automated or sound-activated shows with our moving head laser solutions.
