Feature
Technical Parameter
Feature
|
◎D18-RGB30：R635-8W/G525-10W/B450-12W |
◎D18-RGB20：R635-5W/G525-6W/B450-9W |
| ◎D18-RGB15：R35-4.5/G525-5W/B450-6.5W |
◎Rated Voltage：AC110-220V 50/60Hz |
|
◎Power consumption： 750W |
◎Scan system：①40K high speed scanner，scan angle MAX±30°；input signal ±5V；②X axis Y axis: X axis rotation 540︒(16bit)Y axis rotation 270︒（16bit），XY axis position automatic correction |
|
◎Beam diameter: 8×6.5mm; divergence 1.2mrad |
◎Control mode: auto、DMX512 、master-slave |
|
◎Control interface: waterproof power in, waterproof dmx in/out, waterproof ilda in/out |
◎DMX channel: 6CH/34CH |
|
◎IP rate: IP65 |
◎Demonstration effect：built-in 140 pattern（7 groups ×20 cues） and 20 animation（1 group×20） |
|
◎DMX effect: blanking, strobe, rotation, movement, zoom, write in, speed and color etc. |
◎Control technology：①RDM data bidirectional transmission ② SD card online upgrade ③temperature control system ④DMX512 upgrade |
|
◎Application：highlighting significant landmarks, structures and buildings |

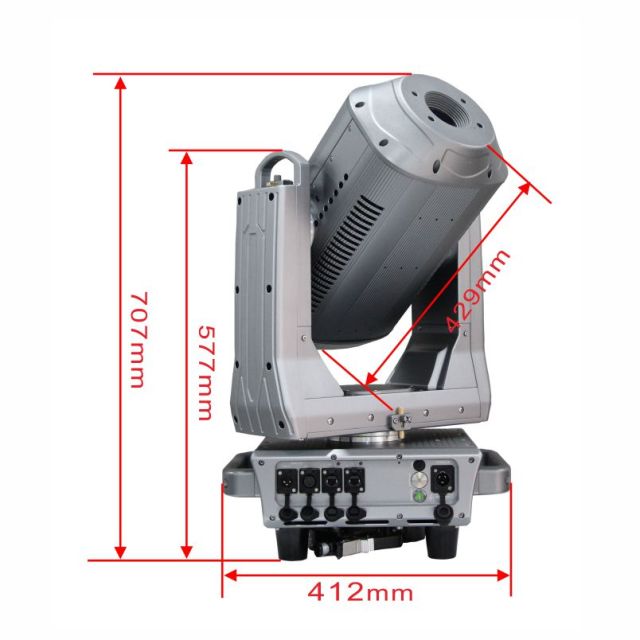

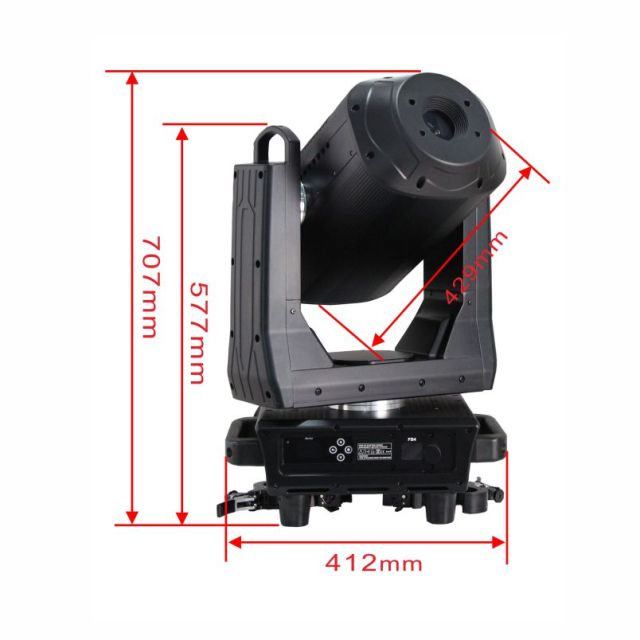

◎Package size： 79X49X91cm |
|
◎Net weight/gross weight: 32 / 98kg (2 in 1) |
|
|
|
|
Model |
Item name |
Laser power |
|
D18-RGB30 |

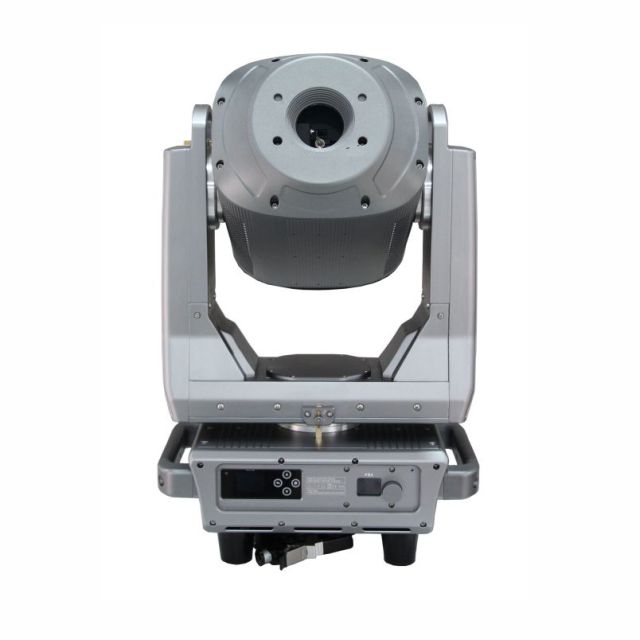

30W RGB outdoor moving head laser |
R635-8W/G525-10W/B450-12W |
|
D18-RGB20 |
20W RGB outdoor moving head laser |
R635-5W/G525-6W/B450-9W |
|
D18-RGB15 |
15W RGB outdoor moving head laser |
R35-4.5/G525-5W/B450-6.5W |
