Feature

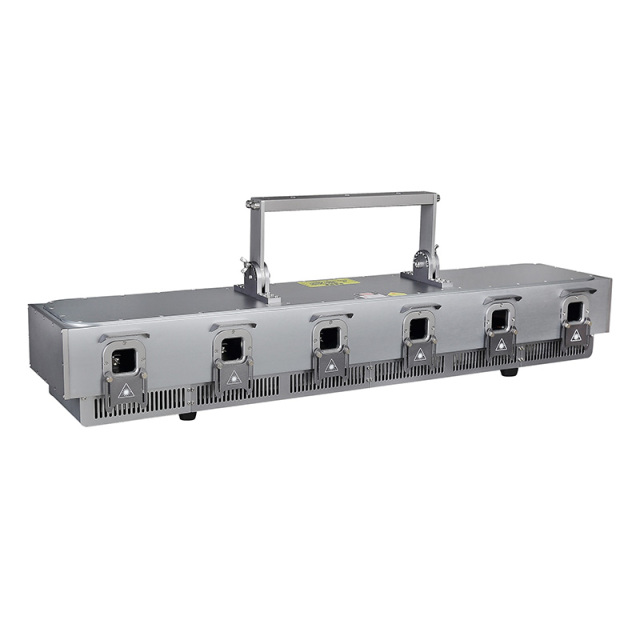

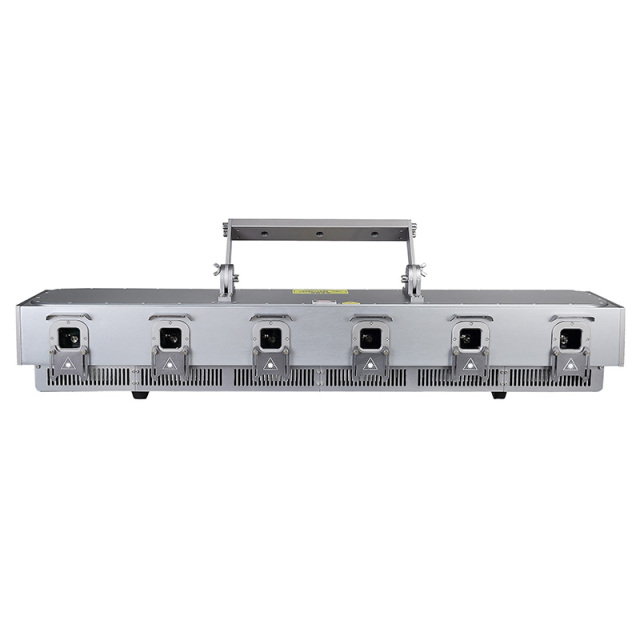

IP65 SixSCAN is designed for all kind of professional staging and is available with 12W RGB and 18W RGB laser power. It is fitted with six laser scanners and six RGB (whitelight) laser modules, each individually controllable.
Thus, each scanner emits either the same animation or, if you like, a different one. The laser bar is controllable via DMX 512 (27, 121 up to 157 channels), Art-NET and ILDA. Colorful output and six different scanners for different outputs at the same time.
Perfectly for outdoor professional lighting designers at concerts, theaters, operas, TV shows, festivals, theme parks and each other event.
Technical Parameter
Product Description
The D12 SixScan Laser Bar is designed for professional outdoor entertainment environments such as concerts, festivals, and stage productions. It targets event organizers and lighting system integrators seeking versatile multi-scanner lasers that can project dynamic animations simultaneously through six independently controllable scanners. Its robust build supports extended operation in outdoor settings.
This laser bar features 12W and 18W RGB laser power options across six scanners, delivering customizable multicolor effects based on rgb laser light technology. It supports common lighting control standards including DMX512, Art-NET, and ILDA, allowing flexible integration with existing systems. The IP65-rated housing and waterproof DMX512 connector ensure durability under outdoor weather conditions.
The D12 excels in environments requiring bright, multi-directional laser effects, such as outdoor concerts, theater LED shows, festivals, and theme park visual displays. Its programmable animations and multiple control modes provide sound adaptability for complex event designs. Buyers will find it suited for repeated use in professional entertainment and broadcasting settings where reliable outdoor laser equipment is required.
The product’s IP65 rating and waterproof DMX512 connectors address procurement priorities for outdoor use compliance and installation reliability. Offering two power levels and numerous control options facilitates OEM/ODM customization and compatibility with various lighting setups. The packaging dimension and net weight provide clear logistical expectations for bulk acquisition and transport considerations.
Made by an established laser manufacturer with an in-house laser module production process, this laser bar integrates temperature regulation and bidirectional data protocols for stable performance. Its 160 preset animation patterns and master-slave modes support efficient configuration, reducing setup time for distributors or importers managing multi-unit deployments.
Feature
IP65 SixSCAN is designed for all kind of professional staging and is available with 12W RGB and 18W RGB laser power. It is fitted with six laser scanners and six RGB (whitelight) laser modules, each individually controllable.
Thus, each scanner emits either the same animation or, if you like, a different one. The laser bar is controllable via DMX 512 (27, 121 up to 157 channels), Art-NET and ILDA. Colorful output and six different scanners for different outputs at the same time.
Perfectly for outdoor professional lighting designers at concerts, theaters, operas, TV shows, festivals, theme parks and each other event.
|
◎D12-W12000:W2000mW(R600+G500+B1000)x6 |
◎D12-W18000:W3000mW(R700+G800+B1500)x6 |
|
◎Rated voltage: AC110~240V 50/60Hz; 260W @ 220 V |
◎Modulation:analog |
|
◎Scanner: 18W25kpps+ x 6pcs,12W20K+x6pcs |
◎IP rate:IP65(outdoor) |
|
◎Control mode:automatic/DMX512/ master-slave |
◎Channel:27H/121H((default)/157CH (individual control) |
|
◎Demonstration effect: built-in 160 pattern(8 groups x 20 cues) |

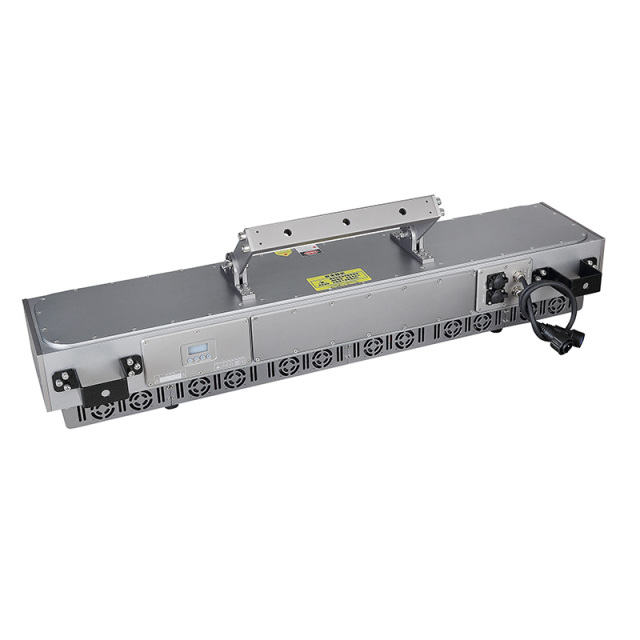

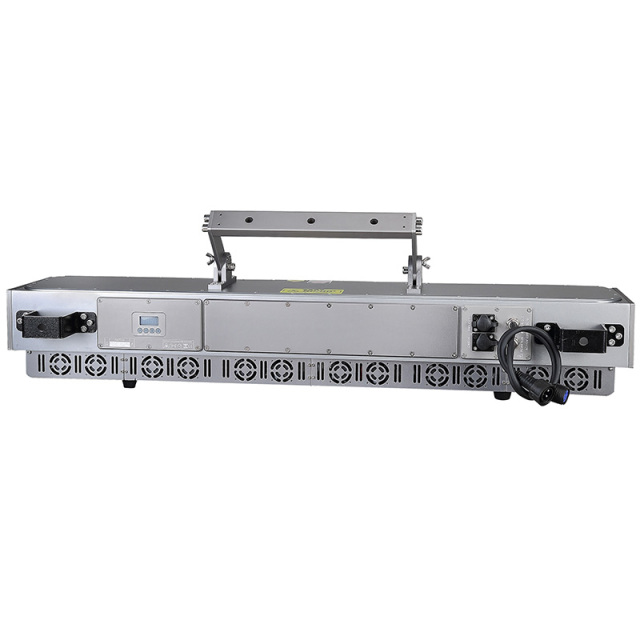

◎Control Interface:Waterproof DMX512 interface |
|
◎Control technology: ①RDM data bidirectional transmission ②temperature control system ③DMX512 upgrade |
◎Operating requirement: dry, less dust, -10~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light. |
|

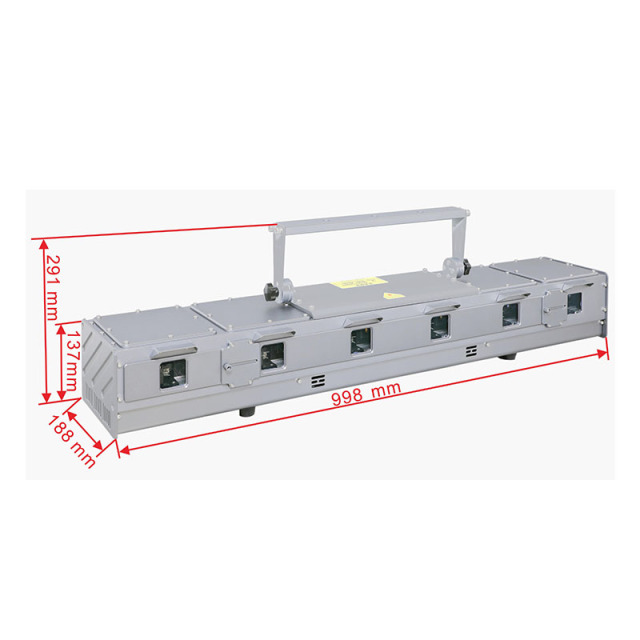

◎1 in1 packing size: 110*36*32cm |
◎N.W./ G.W.: 21kg/25kg |
|
|
Technical Parameter
|
Model |
Item name |
Power |
|
D12-W12000 |
12W outdoor sixscan laser bar |
W2000mW(R600+G500+B1000)x6 |
|
D12-W18000 |
18W outdoor sixscan laser bar |
W3000mW(R700+G800+B1500)x6 |
Use Scenarios
Procurement managers sourcing laser equipment for concerts will value the D12’s ability to deliver multiple laser animations with six heads in a single bar, enhancing stage design with synchronized rgb laser light effects. Its outdoor rating and versatile control protocols meet the operational requirements for reliable and repeatable performance in diverse event locations.
For distributors and project planners in theatrical or festival settings, the D12 bar enables complex laser choreography through individual scanner control and adaptable lighting cues. Its robust, weather-protected design is practical for extended use in outdoor venues or theme park nightly shows, supporting ongoing business needs for durable professional laser equipment.
QUALITY CONTROL
FAQ
What control protocols are compatible with the D12 SixScan Laser Bar?
We support multiple professional control protocols including DMX512, Art-NET, and ILDA. This flexibility allows seamless integration of our laser equipment supplier solutions into complex lighting setups, ensuring high compatibility for diverse event needs.
Can the six scanners of the D12 be programmed to display different animations simultaneously?
Yes, each of the six scanners can be individually controlled to project either the same or distinct animations. This multi-scanner control capability makes our 6 heads moving head laser bar an ideal choice for dynamic and customizable lighting designs.
What environments are suitable for deploying the D12 SixScan Laser Bar outdoors?
Our product features an IP65 waterproof rating and robust housing, designed for outdoor use in dry, low-dust conditions with temperatures ranging from -10°C to 35°C. This ensures reliable operation in concerts, festivals, and other outdoor applications.
Do you offer technical support for installation and maintenance of the D12 SixScan Laser Bar?
Yes, we provide professional guidance for installation, operation, and maintenance to maximize the lifespan of your rgb laser light equipment. Our team assists with setup for smooth integration into your existing systems to ensure optimal performance.
