Feature
Low power outdoor lasers are available in the range from 4 to 5W, with excellent auto play program, compact design, lightweight, making it an ideal laser system for camping,touring laser show.
Technical Parameter
Product Description

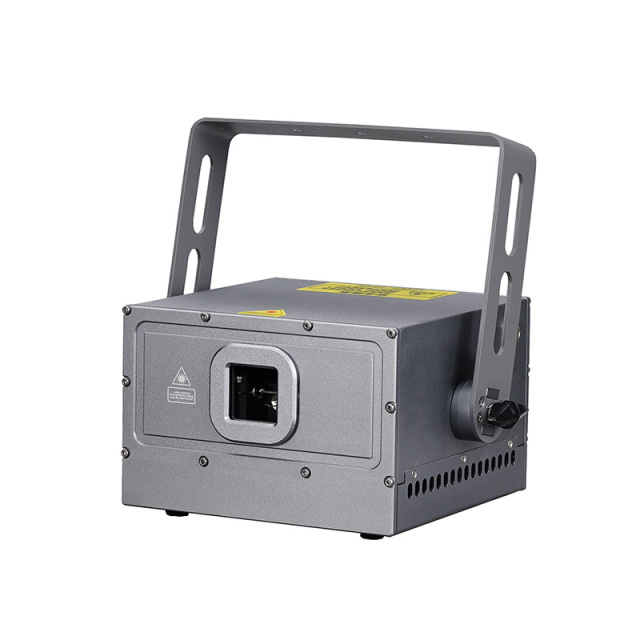

The D10 4W 5W RGB Mini Outdoor Laser is designed for outdoor entertainment environments such as camping, touring, and small to medium laser shows. Its compact size and lightweight form factor support easy transport and setup, making it suitable for event organizers, rental companies, and venue operators seeking a portable laser solution with integrated color mixing capabilities. The IP65 rating ensures reliability in variable weather conditions often encountered outdoors.
This laser system includes two power options—4W and 5W models—with distinct RGB laser diode configurations that produce bright color output. Control flexibility is achieved through multiple interfaces including DMX512, ILDA, master-slave, and an auto mode, accommodating various show control requirements. A 30kpps scanning speed with ±30° maximum scan angle enables smooth projections. Additionally, the D10 incorporates 160 built-in patterns supporting dynamic effects such as rotation, zoom, and strobe modulation.
The combination of portability, weather resistance, and versatile control makes the D10 suitable for outdoor commercial uses such as architectural and water projection lighting or nighttime event enhancements. Its modular control system facilitates integration into existing show setups or rental fleets. Buyers looking for a laser equipment supplier focused on outdoor-capable rgb laser light solutions may find this model appropriate for project-based or recurring events.
The D10’s IP65-rated housing enhances durability for outdoor applications, a relevant factor for buyers sourcing weather-resistant laser equipment. Its compact dimensions and moderate weight streamline logistics and installation. Built-in demonstration programs reduce the need for extensive programming skills during deployment, optimizing setup time for event professionals and distributors. Presence of multiple control channel options supports customization of operational parameters.
With two selectable power models and multiple control interfaces, the D10 caters to diverse client specifications, enabling OEMs and importers to tailor offerings per market demands. The provision of both DMX512 and ILDA controls aligns with common industry standards, easing integration into varied control environments. Quality control emphasis through standardized scanning and modulation technology supports consistent performance for bulk purchasers and project managers.
Feature
Low power outdoor lasers are available in the range from 4 to 5W, with excellent auto play program, compact design, lightweight, making it an ideal laser system for camping,touring laser show.
|
◎D10-W5000: R635-1.2W/G525-1.4W/B450-3W |
◎D10-W4000: R635-1.2W/G525-1W/B450-2W |
|
◎Rated Voltage: AC110~220V 50/60Hz; Rated Power：150W@220V |
◎Scanner: 30kppsfast scanning system, scan angle:max±30°;Input signal:±5V;Linearity distortion<2% |
|
◎Modulation:analog |
◎Beam diameter and divergence:3*6.5mm;1.5mrad |
|
◎Control mode: auto, ILDA,master-slave, DMX512(5CH/17CH/18CH/27/52CH) |
◎Control Interface: Waterproof DMX512 interface,waterproof ILDA(IN） |
|
◎Demonstration effect: built-in 160 pattern. |
◎DMX effect:double pattern mode,and with the function of unique blanking,strobe, rotation, movement, zoom, write in,speed and color etc. |
|
◎Control technology: ①RDM data bidirectional transmission ② temperature control system ③DMX512 upgrade |
◎Application:water shows, buildings, mountains, northern lights and outdoor stage performances, etc. |
|
◎IP rate:IP65(outdoor) |

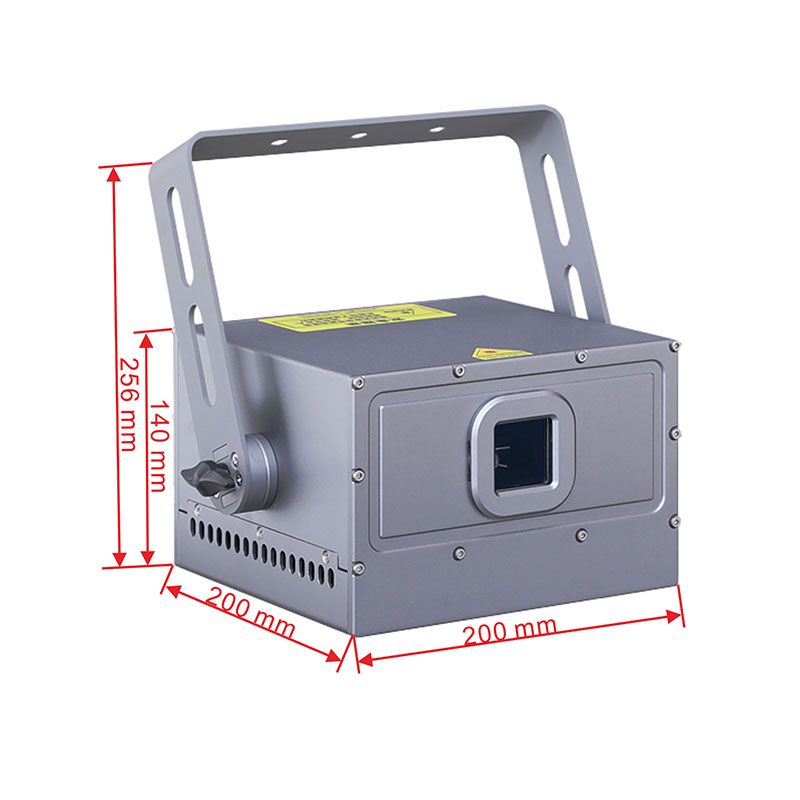

◎Size: 35*34.5*22CM/70*37*24cm(2 in 1) N.W./G.W:5.7/6.5kg 11kg/14kg(2 in 1)) |
|
|
|
Technical Parameter
|
Model |
Item name |
Laser power |
|
D10-W5000 |
5W RGB mini outdoor laser |
R635-1.2W/G525-1.4W/B450-3W |
|
D10-W4000 |
4W RGB mini outdoor laser |
R635-1.2W/G525-1W/B450-2W |
Use Scenarios
For companies specializing in outdoor rentals or touring laser shows, the D10 delivers a portable solution featuring IP65 protection suitable for outdoor venues. Its lightweight design reduces transport strain, while the versatile control modes accommodate a range of lighting consoles and synchronization setups. This makes it practical for rental inventory diversification where quick deployment and weather resilience are priorities.
Procurement of the D10 is suited for firms involved in architectural lighting or environmental projection displays. Its stable RGB laser output and dynamic effects contribute to highlighting building features or water surfaces under varying climatic conditions. The device’s compatibility with DMX512 and robust pattern library supports creative lighting designs controllable within standard show management frameworks.
QUALITY CONTROL
FAQ
What control options are available for the D10 4W 5W RGB Mini Outdoor Laser?
Our D10 laser supports multiple control modes, including auto play, ILDA, master-slave, and DMX512 interfaces. These options accommodate various show setups, making it a versatile choice among laser equipment suppliers for professional outdoor events.
Is the D10 Mini Outdoor Laser suitable for use in challenging weather conditions?
Yes, the D10 features an IP65-rated waterproof housing, allowing reliable operation in outdoor environments with exposure to rain and moisture. This weather resistance ensures your rgb laser light performs consistently during touring or camping laser shows.
Can the built-in laser effects be customized or expanded for complex displays?
The D10 comes with 160 integrated demonstration patterns capable of dynamic effects such as strobe, rotation, zoom, and color modulation. We offer flexible programming through DMX channels to tailor effects specific to your event requirements.
Do you provide support for installation and system integration of your moving head laser products?
We assist our partners in configuring the D10 and other moving head laser products for optimal performance. Our technical team supports various control protocols to integrate smoothly with your setup, ensuring precise and stable laser projections.
