Feature
Technical Parameter
|
◎A6-W5000: R635-1.2W/G525-1.4W/ B450-3W |
◎A6-W3000: R635-700mW/G525-800mW/B450-1.5W |
|
◎Rated Voltage: AC100~240V 50/60Hz ; ≤100W |
◎Scanner: 3W 25K+, 5W 30kpps fast scanning system, scan angle: max ±30°; Input signal: ±5V; |
|
◎Modulation: analog |
◎Beam diameter and divergence: 3*6.5mm;1.5mrad |
|
◎Control mode: sound, auto, master-slave, DMX512(5/17/18/27/52CH), SD card, ILDA |

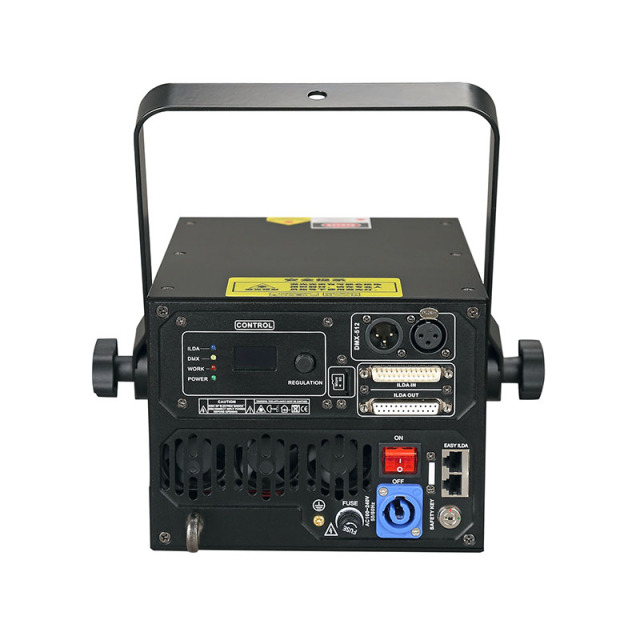

◎Control Interface: 3 pin DMX512, 25DB ILDA |
|
◎Demonstration effect: built-in 160 pattern,SD card unlimited storage. |
◎DMX effect: double pattern mode,and with the function of unique blanking,strobe, rotation, movement, zoom, write in,speed and color etc. |
|
◎Control technology: ①RDM data bidirectional transmission ② SD card online upgrade ③temperature control system ④DMX512 upgrade |
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature), will reduce the attenuation of the diode and extend the life of the light. |
|
◎Application: disco, club, medium indoor venue, theatre, etc. |
◎Size: 40*37*47.5cm(2 in 1) N.W./G.W.: 14.5/18kg |
|
|
|
|
Model |
Item name |
Laser power |
|
A6-W5000 |
5W RGB club laser |
R635-1.2W/G525-1.4W/B450-3W |
|
A6-W3000 |
3W RGB club laser |
R635-700mW/G525-800mW/B450-1.5W |
