◎A10-W10000: R635-3W, G525-3W, B450-4W |
◎A10-W15000 : R635-4.5W, G525-4W, B450-6.5W |
|
◎A10-W15000(plus) : R635-4.5W, G525-5W, B450-6.5W |
◎Rated Voltage: AC100~240V 50/60Hz;250W |
|
◎Scanner: 40kpps fast scanning system, scan angle: max±30° ; Input signal: ±5V; |
◎Modulation: analog |
| ◎Beam diameter and divergence: 6*6.5mm; 1.5mrad |
◎Control mode: sound, auto, master-slave, DMX512(5/17/18/27/52CH), SD card, ILDA |
|
◎Demonstration effect: built-in 160 pattern, SD card unlimited storage. |
◎Control Interface: 3 pin DMX512, 25DB ILDA, EASY ILDA |
|
◎DMX effect: double pattern mode, and with the function of unique blanking, strobe, rotation, movement, zoom, write in, speed and color etc. |
◎LCD display board |
|
◎Control technology: ①RDM data bidirectional transmission ② SD card online upgrade ③temperature control system ④DMX512 upgrade |
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature), will reduce the attenuation of the diode and extend the life of the light. |
|
◎Application: disco, club, medium indoor venue, theatre, etc. |

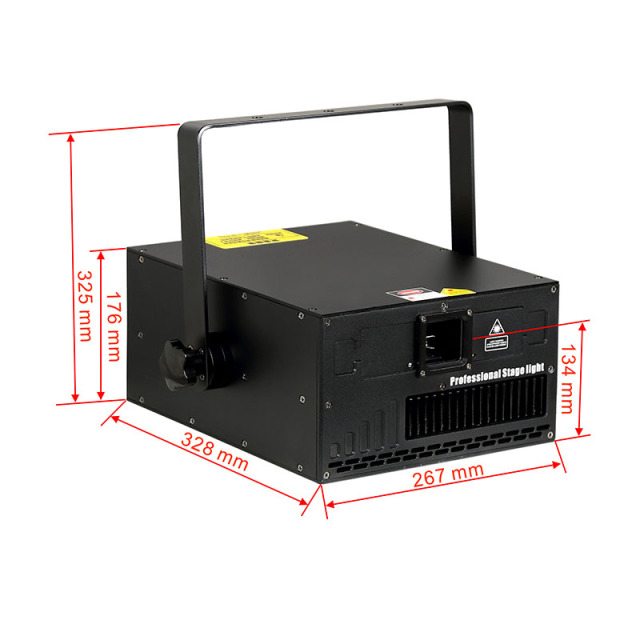

◎Size(2 in1): 60* 43 *37cm |
| ◎N.W./G.W.: 23/28kg | |
|
|
|
|
Model |
Item name |
Laser power |
|
A10-W10000 |
10W RGB club laser |
R635-3W/G525-3W/B450-4W |
|
A10-W15000 |
15W RGB club laser |
R635-4.5W/G525-4W/B450-6.5W |
|
A10-W15000 (plus) |
15W RGB club laser |
R635-4.5W/G525-5W/B450-6.5W |
