moving head laser bar manufacturer and rgb laser bar supplier. Use this page as a pre-quote checklist when evaluating a and when comparing Lightful as an. It explains which Y8 specifications — six independent heads, RDM bidirectional data, a DMX512 upgrade path, and ≤200W power consumption — should be written into your RFQ before you commit volume.
Two phrases sound similar in a tender document but describe different output behaviour. Confirm these definitions before you ask a supplier for pricing.
A bar-shaped light with several laser modules packed into independent, rotating heads on one chassis. Instead of throwing one fixed beam, the fixture drives each head so the beams sweep, cross and animate across a venue.
A laser bar whose heads mix red, green and blue diodes into full-colour output. Because each diode contributes to one combined light path, the fixture can produce a large palette instead of a single laser colour.
Copy these eight checks into your supplier scorecard. For every question we show what a transparent supplier should be able to answer, then how Lightful answers on the Y8 series.
Ask this: can the fixture be cabled into an existing DMX512 rig without a proprietary console?
How Lightful answers: Y8 supports DMX512, sound, automatic and master-slave control modes with 14/35/42 channel profiles.
Ask this: does the manufacturer support RDM so technicians can address and check units without climbing a truss?
How Lightful answers: Y8 supports RDM data bidirectional transmission, giving procurement teams a stronger field-service story.
Ask this: how do you update control firmware when the venue or rental house changes protocols?
How Lightful answers: the Y8 supports a DMX512 upgrade, confirming the product is treated as an evolving control platform.
Ask this: how is beam quality and brightness modulation handled across the six heads?
How Lightful answers: the Y8 uses analog modulation, a φ15mm beam diameter and high-intensity R/G/B diode combinations per head.
Ask this: what is the construction plan for weekly load-in/load-out cycles?
How Lightful answers: Y8 is built with a durable housing suitable for repeated transport, plus compact dimensions and portable weight.
Ask this: what is the real maximum consumption when all six heads run at full output?
How Lightful answers: Y8 is rated at ≤200W power consumption with AC100~240V 50/60Hz input.
Ask this: can this exact model be installed outdoors, in humidity, or in an unconditioned warehouse?
How Lightful answers: the official Y8 spec is indoor small-medium use, in a dry, low-dust, 0~35°C environment.
Ask this: what is the MOQ, can units be OEM/ODM branded, and is spare-part support available?
How Lightful answers: purchasing is quote-based via Get The Latest Quote / Add to Quote List; submit MOQ, OEM/ODM and spare-part questions through the factory contact route.
When a bar carries six moving heads, you are really sourcing seven motor-driven axes, full-colour diode engines and advanced control in one frame. Here is the spec sheet Lightful publishes for the Y8 family.
RGB full color · Analog modulation| Model parameter | Y8-W12000 | Y8-W3000 |
|---|---|---|
| Description | 12W RGB moving head laser bar | 3W RGB moving head laser bar |
| Diode configuration | W2000 × 6 pcs R638 600mW + G520 500mW + B450 1W |
W500 × 6 pcs R638 200mW + G520 100mW + B450 200mW |
| Colour / beam | RGB full color | RGB full color |
| Beam diameter | φ15mm | |
| Motors | 7 × 42 high-torque stepper motors | |
| Modulation | Analog | |
| Rotation | Y-axis 240° rotation; 140° rotation per head | |
| Channels | 14 / 35 / 42 CH | |
| Control modes | Sound / automatic / DMX512 / master-slave | |
| Control technology | RDM data bidirectional transmission; DMX512 upgrade | |
| Power | AC100~240V 50/60Hz; ≤200W consumption | |
| Environment | Indoor small-medium; dry, low dust, 0~35°C | |
Why this matters for procurement: “six independent laser heads” is the heart of the Y8 design. Each head holds a red, green and blue diode set, and the frame keeps total draw under 200W while offering 14/35/42 DMX channel footprints for different rig sizes.
The Y8 models cover the same six-head chassis at two total output classes: 12W RGB (Y8-W12000) and 3W RGB (Y8-W3000). These scenarios show how venue reality changes a buying decision.
DJs moving between rooms need one fixture that performs without deep programming.
Buyer decision: quote the Y8-W3000 for low-draw standalone rigs; step up to Y8-W12000 when the rider demands a bigger six-head statement.
Rooms with fixed truss need repeatable shows and remote maintenance workflows.
Buyer decision: add the DMX512/RDM line to the quote so your venue technician can address heads and manage firmware as the show grows.
Rental stock is judged by uptime, predictable spares and consistent show quality.
Buyer decision: compare Y8-W12000 and Y8-W3000 side by side, then ask the factory route about spares and OEM/ODM terms before bulk purchase.
The Y8 official buy path is quote-based, not one-click checkout. That gives procurement teams room to compare model outputs, DMX channel footprints, control upgrades and OEM/ODM terms before committing.
Choose your output class. Compare the Y8-W12000 (12W total RGB) and Y8-W3000 (3W total RGB) directly on the product page.
Send volume + custom requirements. Include target quantity, OEM/ODM needs, spare-part requests and venue environment for a factory-direct reply.
Use the official quote workflow. Click Get The Latest Quote or Add to Quote List on the Y8 page, then confirm your control and channel configuration.
Keep adjacent product options together for a faster catalog comparison.

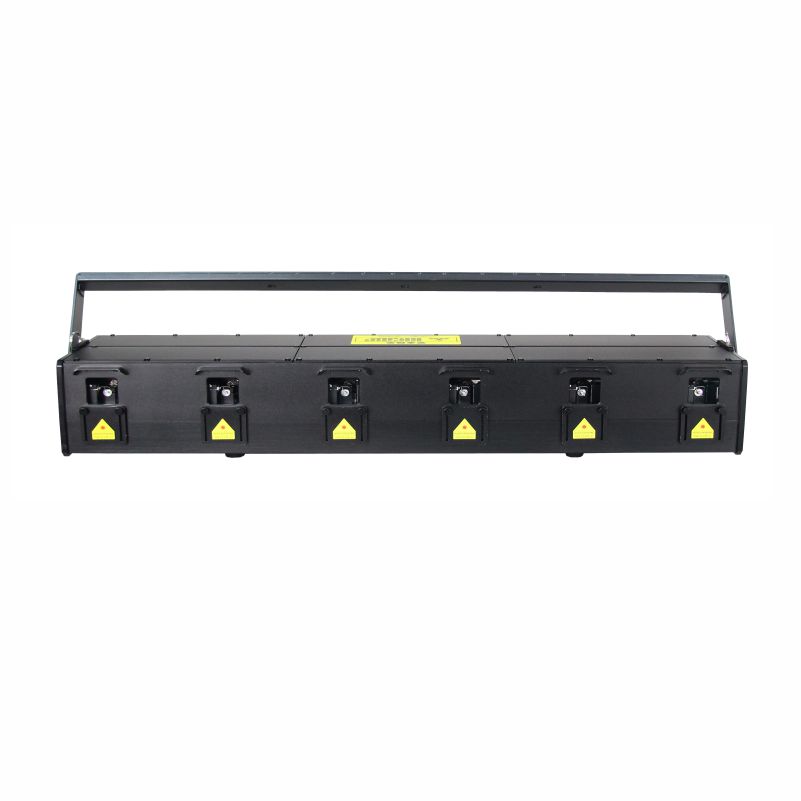

Fully customizable OEM solutions for the sixscan laser bar. Engineered with IP66-rated housing, this outdoor laser light offers 30Kpps precision.
View product

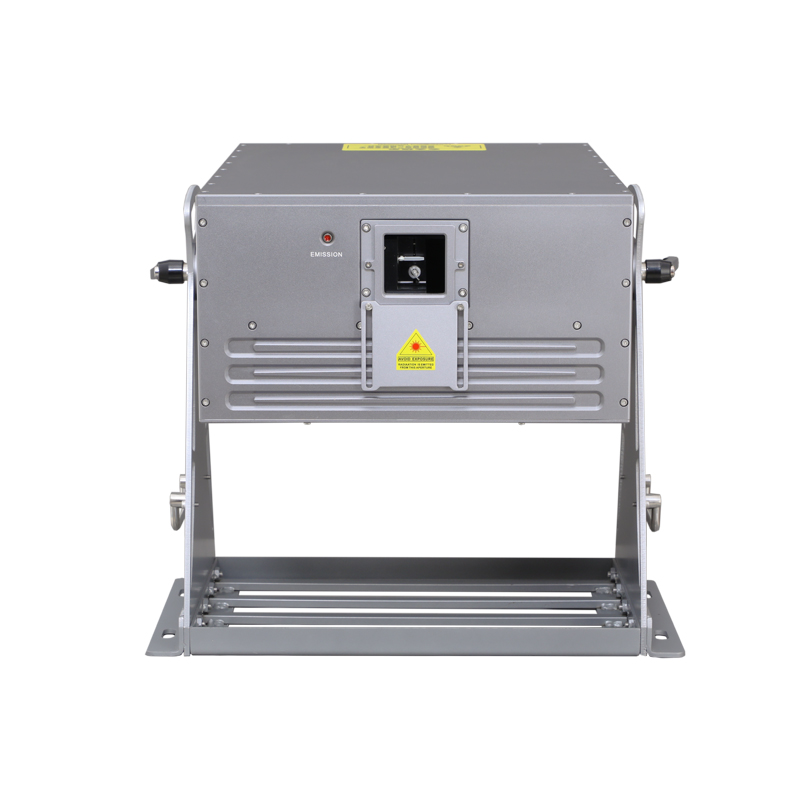

Professional-grade D1 laser features 360° rotation and IP65 protection. Trusted by laser manufacturers for reliable rgb laser light and outdoor projection.
View product

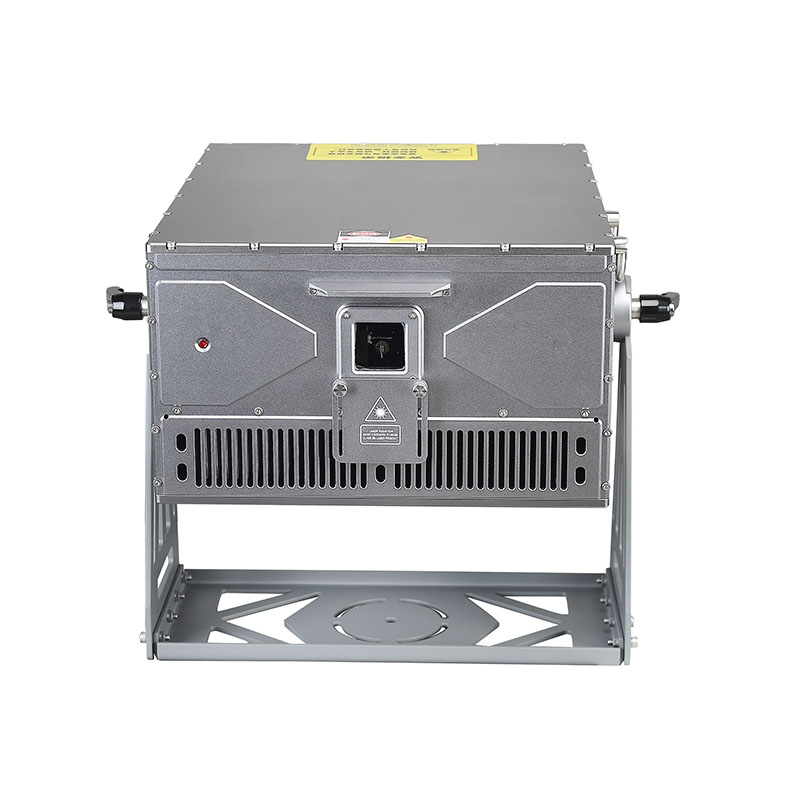

D8 series rgb laser light solutions provide IP65-rated durability for professional integrators. Sourced from expert laser manufacturers for outdoor events.
View productboth are six-head rgb moving head laser bars on the same chassis, but the total optical output class differs. the y8-w12000 uses six w2000 modules — r638 600mw, g520 500mw and b450 1w per head — for up to 12w total rgb output. the y8-w3000 uses six w500 modules for a 3w total output class. common power consumption is rated under 200w.
y8 supports dmx512, sound, automatic and master-slave control modes. the channel footprint can be configured at 14ch, 35ch or 42ch, giving designers flexibility between simple standalone operation and detailed per-head show control.
yes. the published control technology includes rdm data bidirectional transmission and dmx512 upgrade support. rdm allows addressing and status data to travel back over the dmx line, which is useful for installed venue maintenance and rental fleet management.
the official specification lists indoor small-medium applications with an operating requirement of a dry, low-dust environment at 0~35°c. buyers planning outdoor or high-humidity positions should discuss other lightful outdoor-class laser fixtures instead.
y8 is rated at ac100~240v 50/60hz input with power consumption controlled under 200w. that makes venue power planning more predictable when a bar runs multiple moving heads at once.
the official y8 page uses a quote-based path: buyers can select get the latest quote, add to quote list and view quote list rather than checking out directly. for oem/odm, bulk quantities, spare-part terms and customization, procurement teams should submit requirements through lightful’s contact page and reference the y8-w12000 or y8-w3000 model.
